SIMPLEDIAG - The future of user-friendly features
This interface is designed to help the user quickly and easily do the job they need. Different features can be activated depending on what one needs. All software is designed so that the user without much thought within seconds can do what he's got.
We release new updates very often and all our software have automatic updates. Thus you can be sure you are always using the latest version of the app.
We have updated our minimum system requirements in order to keep up with the latest technologies.
Our software requires minimum Windows 7 with Service Pack 1 installed and .NET minimum version 4.7.2.
All of these software below can also work with J2534 hardware

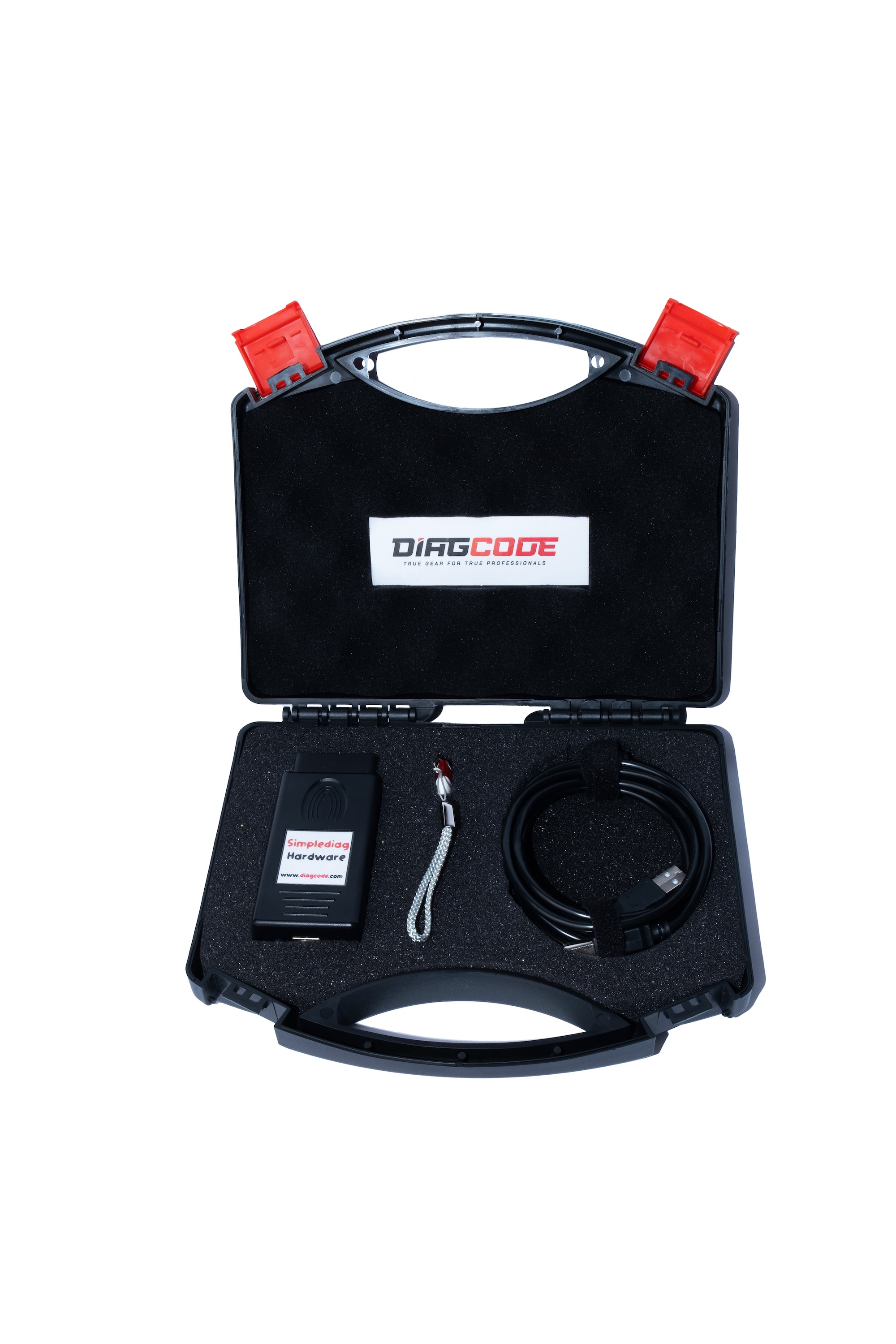

Simplediag Interface -> 290 euro
J2534 hw-Open Port 2.0 -> 70 euro
Software that can can work with Simplediag and J2534:
PRODUCT:
PRICE:

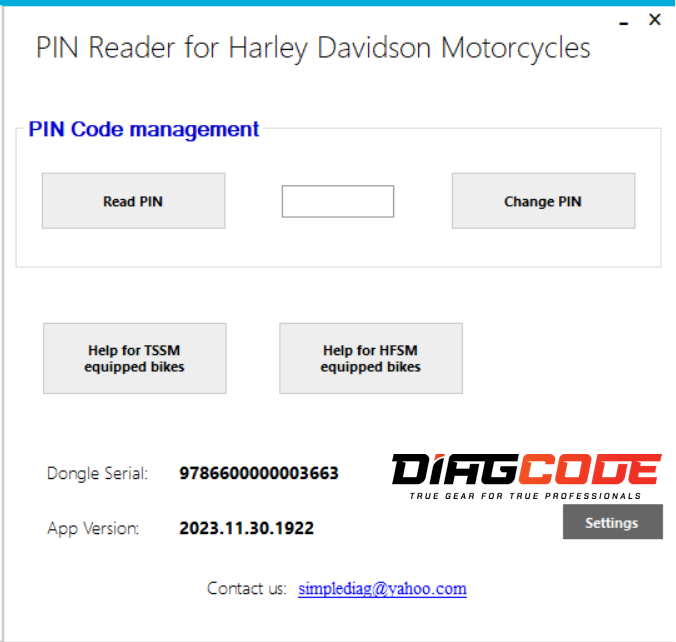

SD01 -> HD PIN Code reading
FUNCTIONALITY: With this license you can calculate the necessary codes and program the keys for the Harley-Davidson
COMPATIBILITY: Dyna 2007-2017, Softail 2006-2017, Sportster 2007-2017, Street 2014-2017, VRSC 2006-2017

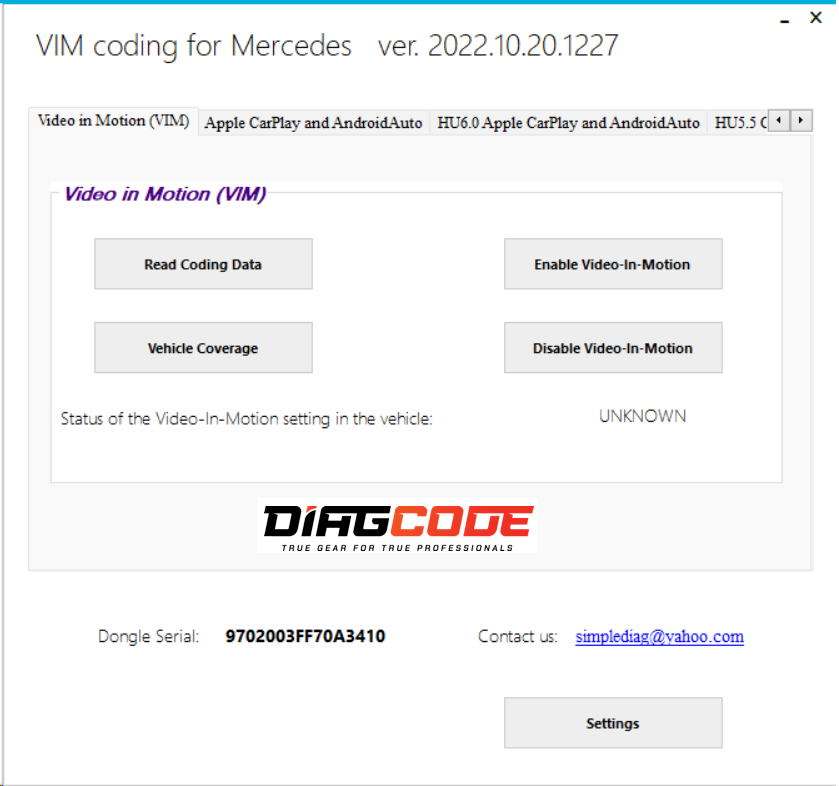

SD02 -> Video In Motion and CarPlay – activation, deactivation and HU5.5 coding
FUNCTIONALITY: Activation of Video in Motion and CarPlay by OBDII
COMPATIBILITY: Video in Motion for NTG5.xx - 2014-2017, NTG5.5 - 2016-2017, CarPlay for NTG 5.1 - 2015-2017
Video In Motion:
NTG5.xx - 2014-2017
C-Class - W205
C-Class - S205
S-Class - W222
S-Class - V222
S-Class Coupe - C217
Vito&Viano - W447
NTG5.5 - 2016-2017
E-Class - W213
CarPlay for NTG 5.1 - 2015-2017:
A-Class - W176
B-Class - W246/W242
C-Class - W204
GLK – Class – X204
E-Class - W212
CLS-Class - W218
CLA-Class - W117
GLA-Class - W156
ML/GL-Class – W166/X166
GLE-Class - W166
GLE-Class - W292
GLS-Class - W166

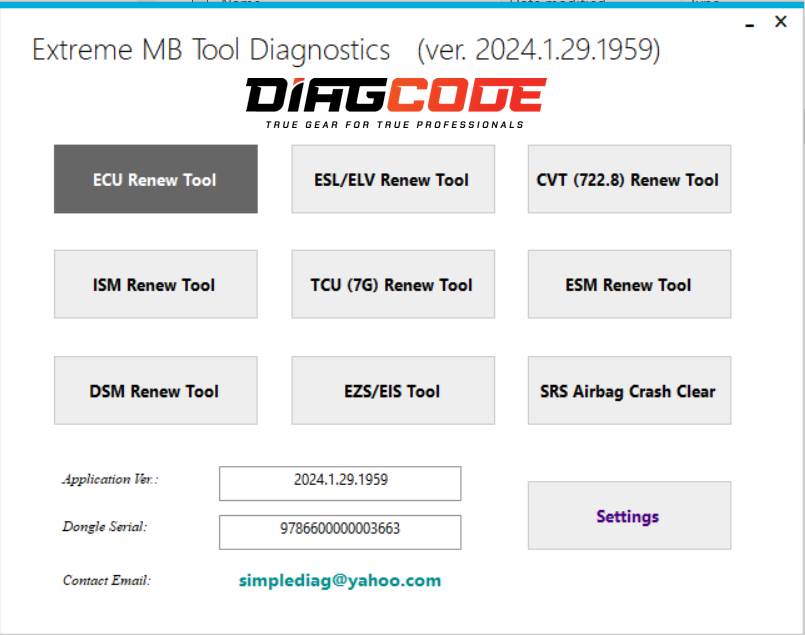

SD03 -> Extreme MB renew tool
FUNCTIONALITY: With this software you can read service hash and calculate dealer hash all automaticly in seconds and you can renew the units.
COMPATIBILITY: ALL FBS3 components – EZS/EIS, ESL/ELV, TCU(7G), CVT(722.8), ISM, DSM, ECU
ECU:
BOSCH CDI-1 (EDC15C5), BOSCH CDI-2 (EDC15C6), BOSCH CR3.xx (EDC16), BOSCH CR4.xx (EDC16), BOSCH CR5.xx (EDC16), BOSCH CR6.xx (EDC16), BOSCH CR60.xx, BOSCH ME2.8, BOSCH ME9.7, BOSCH MED17.7.x, CONTINENTAL CRR1, CONTINENTAL SIM271DE, DELPHI CRD1.1, DELPHI CRD2.xx, DELPHI CRD3.xx, SIEMENS SIM266, SIEMENS SIM271KE, SIEMENS SIM4LE, SIEMENS SIM4LKE
ESL/ELV:
Old Motorola (W202, W208, W210), New Motorola (W203, W209, W211, W639, W906), NEC (W639, W906), NEC (W204, X204, W207, W212), NEC (W169, W245)
7G:
Renew, Read and Write SCN coding and EHS hardware part number of Electronic Transmission Control Unit (7G-tronic)
SRS Airbag Crash Clear (for the moment only by dump). Supported units are:
W168, BOSCH, Motorola MC68HC11KA, Part Nr: 0285001222-0018203126
W171, TEMIC, Motorola 3K91D, Part Nr: 1718202426
W203, BOSCH, Motorola, Part Nr: 0018209726
W203, BOSCH, Motorola HC12B32 (912BE32), Part Nr: 0285001373
W204/W207, CONTINENTAL, 25C640, Part Nr: 2079011800
W204/W207, CONTINENTAL, 95128, Part Nr: 2079012500
W204/W207, SIEMENS VDO, 95640, Part Nr: 2048202285
W211/W219, BOSCH, CR16, Part Nr: 0285010146
Citan, CONTINENTAL, 95160, Part Nr: any
For CVT (722.8) you can program original and current VIN and transfer codingfrom old to new CVT

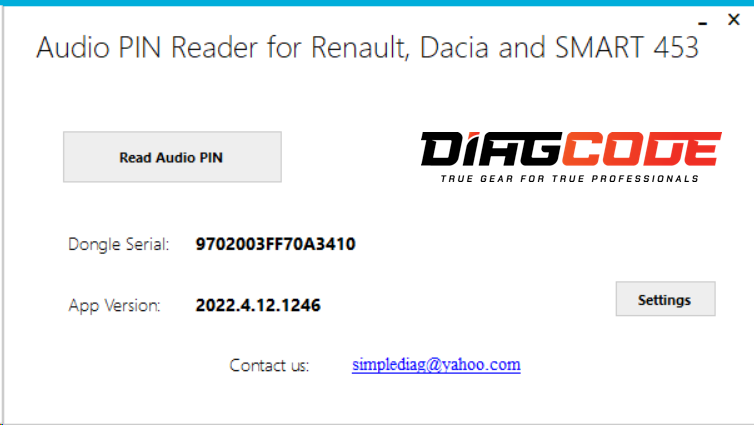

SD08 -> Radio PIN code reader via OBDII for Renault, Dacia and SMART 453 models
FUNCTIONALITY: Automatically reads the serial number of the radio and calculates the code
COMPATIBILITY: Renault, Dacia and SMART 453
ECU:
BOSCH CDI-1 (EDC15C5), BOSCH CDI-2 (EDC15C6), BOSCH CR3.xx (EDC16), BOSCH CR4.xx (EDC16), BOSCH CR5.xx (EDC16), BOSCH CR6.xx (EDC16), BOSCH CR60.xx, BOSCH ME2.8, BOSCH ME9.7, BOSCH MED17.7.x, CONTINENTAL CRR1, CONTINENTAL SIM271DE, DELPHI CRD1.1, DELPHI CRD2.xx, DELPHI CRD3.xx, SIEMENS SIM266, SIEMENS SIM271KE, SIEMENS SIM4LE, SIEMENS SIM4LKE
ESL/ELV:
Old Motorola (W202, W208, W210), New Motorola (W203, W209, W211, W639, W906), NEC (W639, W906), NEC (W204, X204, W207, W212), NEC (W169, W245)
7G:
Renew, Read and Write SCN coding and EHS hardware part number of Electronic Transmission Control Unit (7G-tronic)
SRS Airbag Crash Clear (for the moment only by dump). Supported units are:
W168, BOSCH, Motorola MC68HC11KA, Part Nr: 0285001222-0018203126
W171, TEMIC, Motorola 3K91D, Part Nr: 1718202426
W203, BOSCH, Motorola, Part Nr: 0018209726
W203, BOSCH, Motorola HC12B32 (912BE32), Part Nr: 0285001373
W204/W207, CONTINENTAL, 25C640, Part Nr: 2079011800
W204/W207, CONTINENTAL, 95128, Part Nr: 2079012500
W204/W207, SIEMENS VDO, 95640, Part Nr: 2048202285
W211/W219, BOSCH, CR16, Part Nr: 0285010146
Citan, CONTINENTAL, 95160, Part Nr: any
For CVT (722.8) you can program original and current VIN and transfer codingfrom old to new CVT

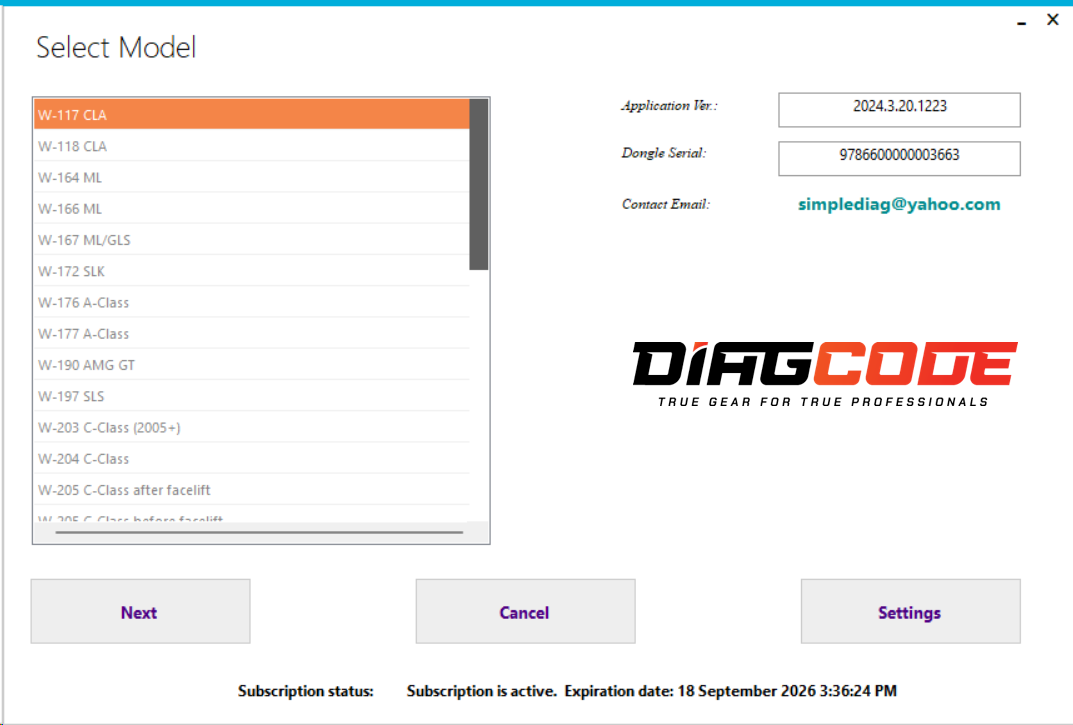

SD09 -> AMG Activator for MB

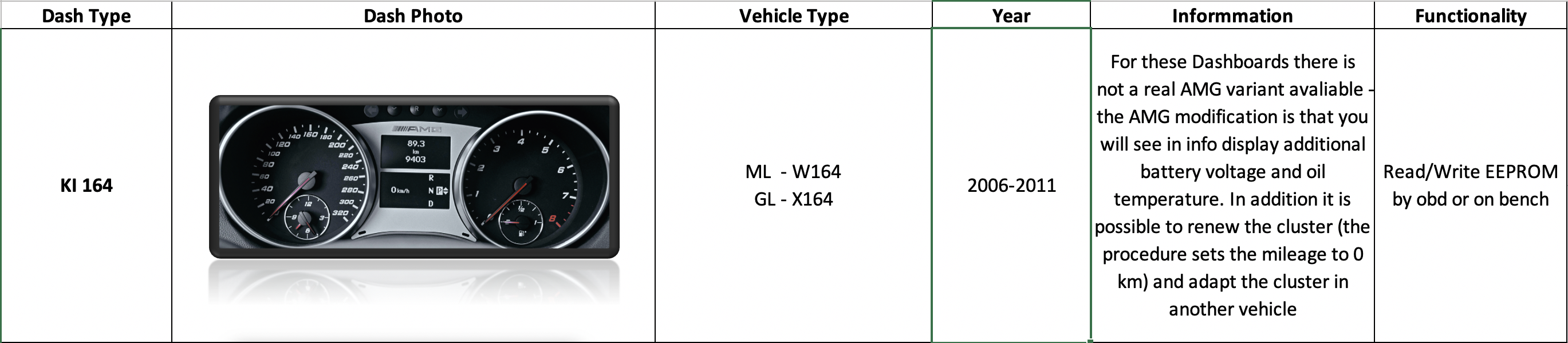

KI 164 -> ML(W164); GL(X164) Click here for more info

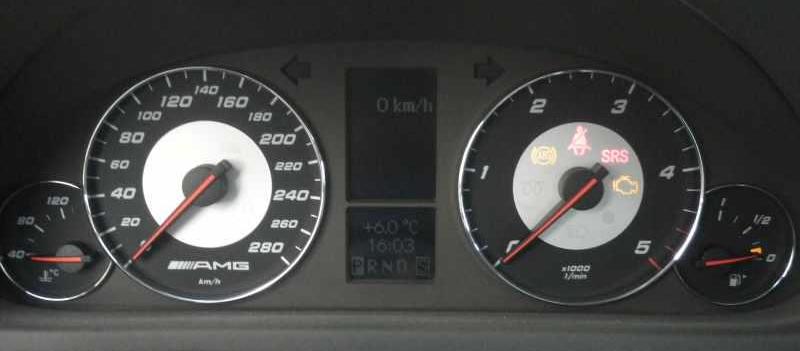

KI 203 -> C(W203); CLK(W209) Click here for more info

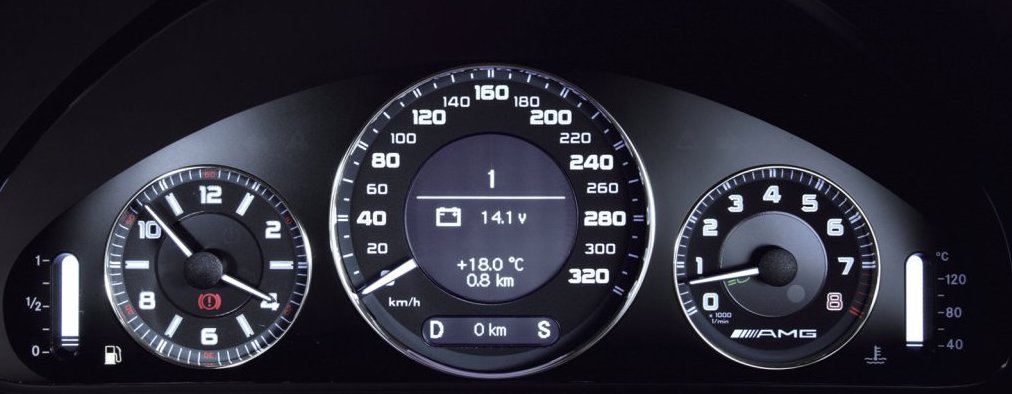

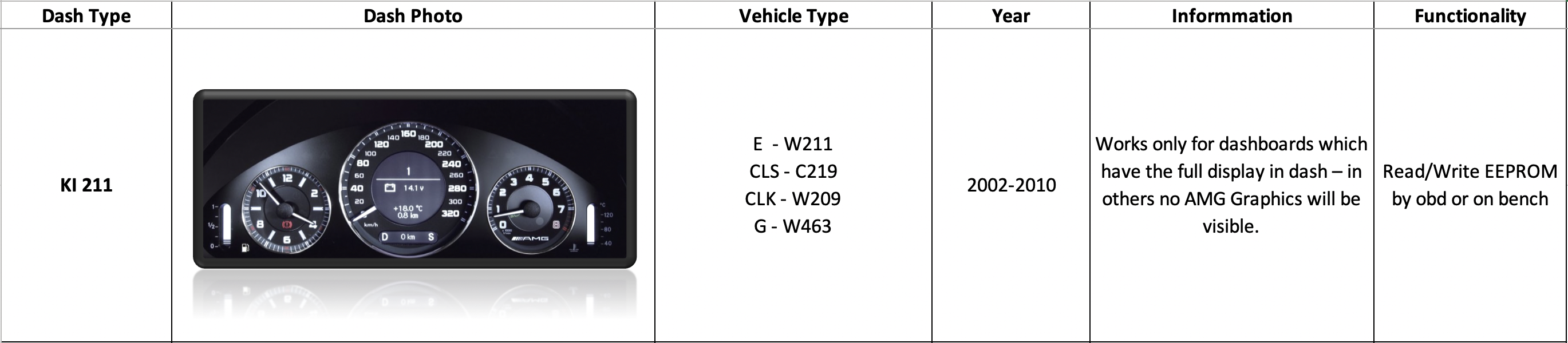

KI 211 -> E(W211); CLS(C219); CLK(W209); G(W463) Click here for more info

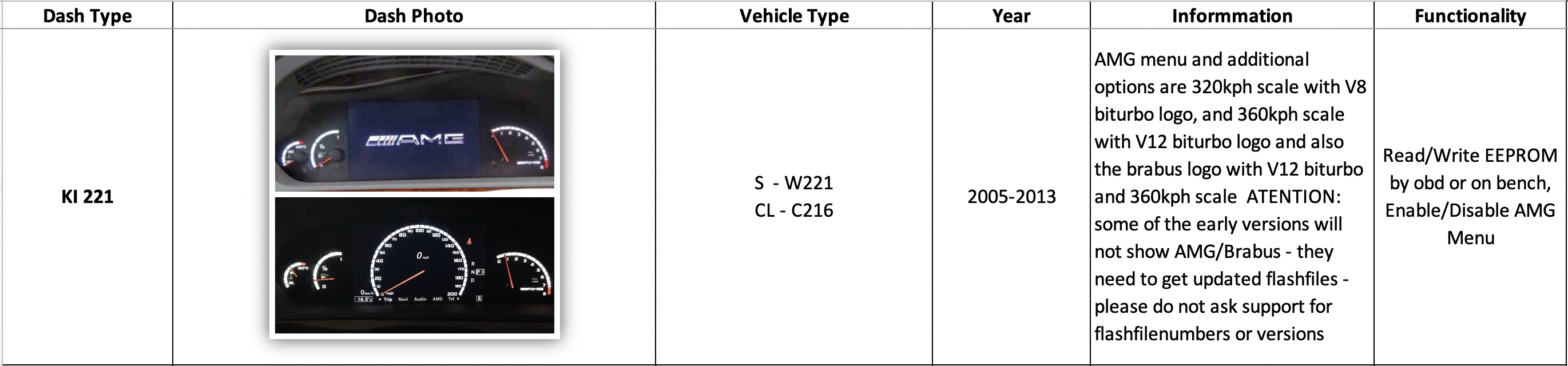

KI 221 -> S(W221); CL(C216) Click here for more info

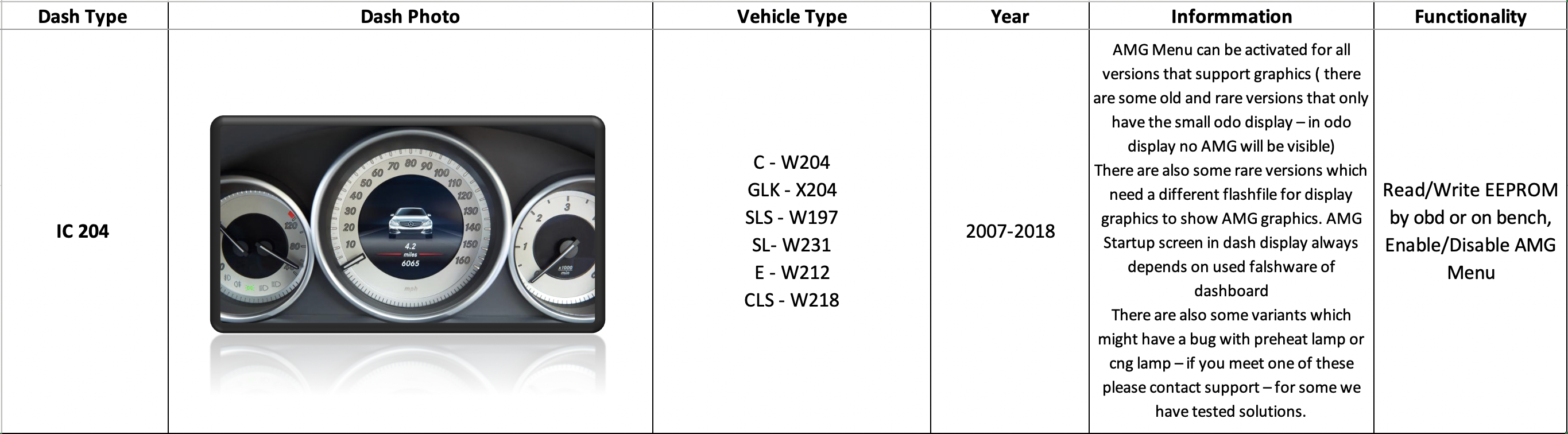

IC 204 -> C(W204); GLK(X204); SLS(W197); SL(W231); E(W212); CLS(W218) Click here for more info

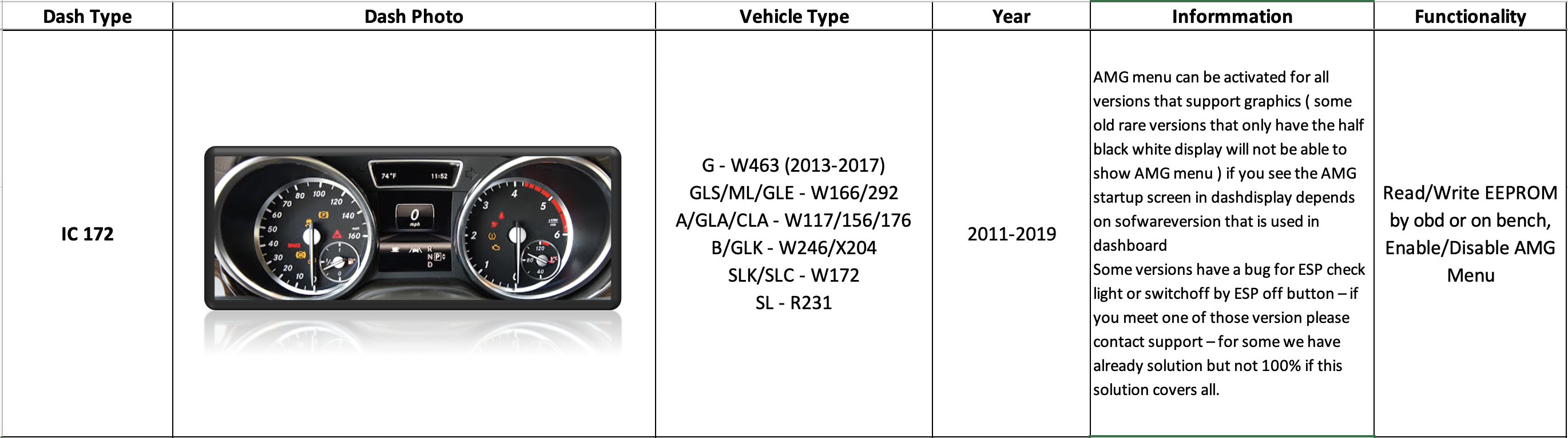

IC 172 -> G(W463 2013-2017); GLS/ML/GLE(W166/292); A/GLA/CLA(W117/156/176); B/GLK (W246/X204); SLK/SLC(W172); SL(R231) Click here for more info

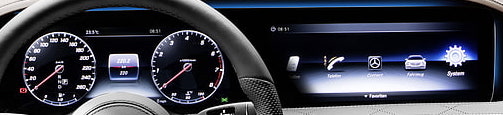

IC 222 -> C/GLC(W205/253); C/GLC Facelift(W205/253); S/CL(W222/217); Maybach(V222); AMG GT(C190) Click here for more info
IC 222 -> W217/222 pre facelift up to 2016 Click here for more info
IC 222 -> W217/222 pre facelift 2016+ Click here for more info
IC 213 analog -> S/CL(W222/217) Facelift; G(W463 - 2018+); E/CLS/E cabrio(W213/238/257); C/GLC(W205/253 facelift only small LCD) Click here for more info

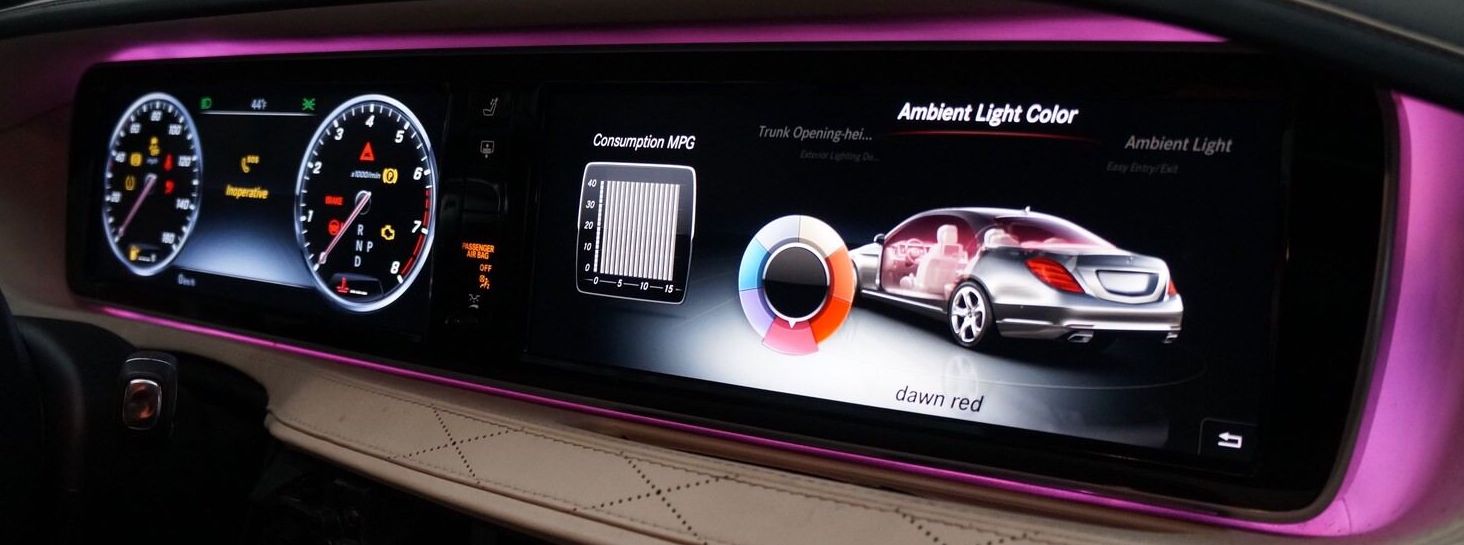

IC 213 FULL LCD-> S/CL(W222/217) Facelift; G(W463 - 2018+); E/CLS/E cabrio(W213/238/257); C/GLC(W205/253 facelift) Click here for more info

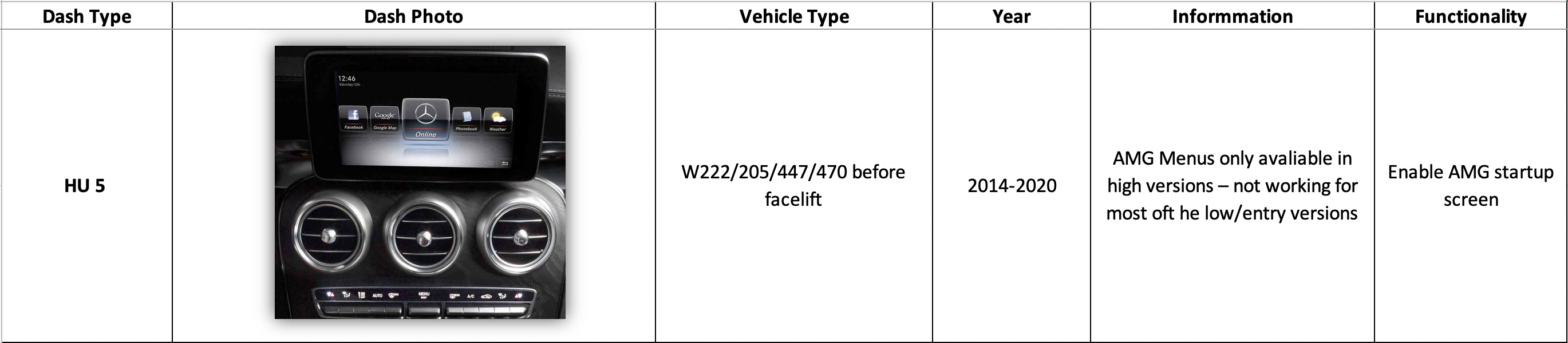

HU5 -> W222/205/447/470 before facelift Click here for more info

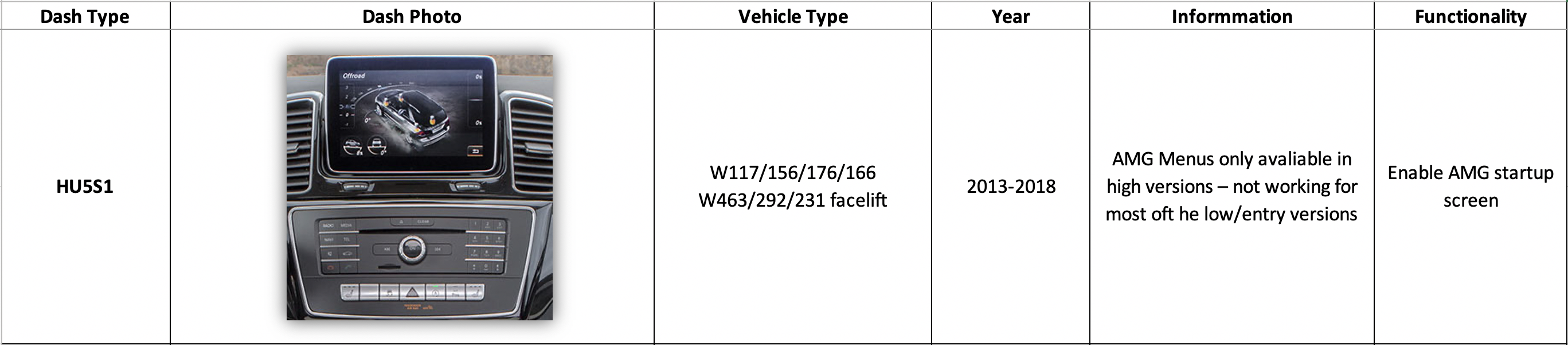

HU5S1 -> W117/156/176/166 W463/292/231 facelift Click here for more info

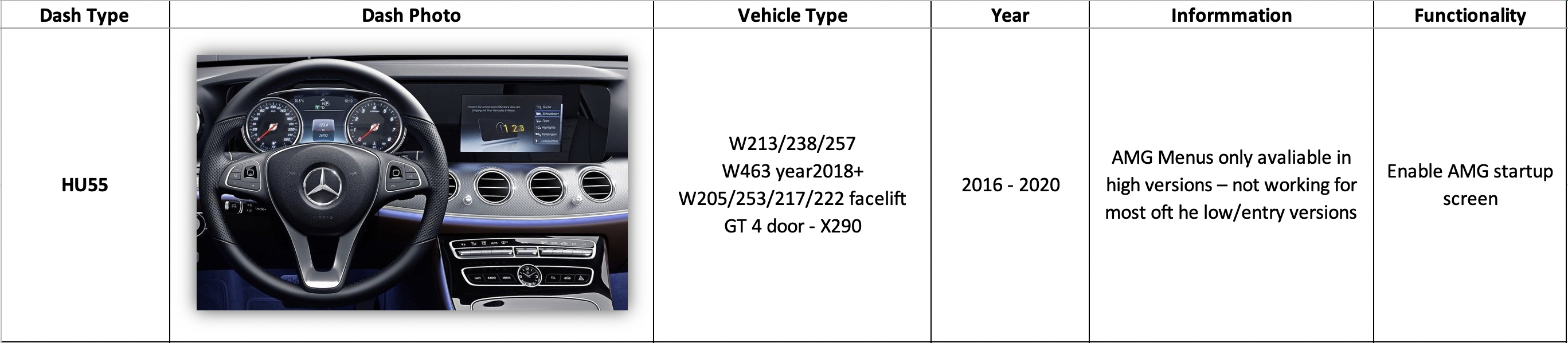

HU55 -> W213/238/257; W463 - 2018+ W205/253/217/222 facelift GT 4 door - X290 Click here for more info

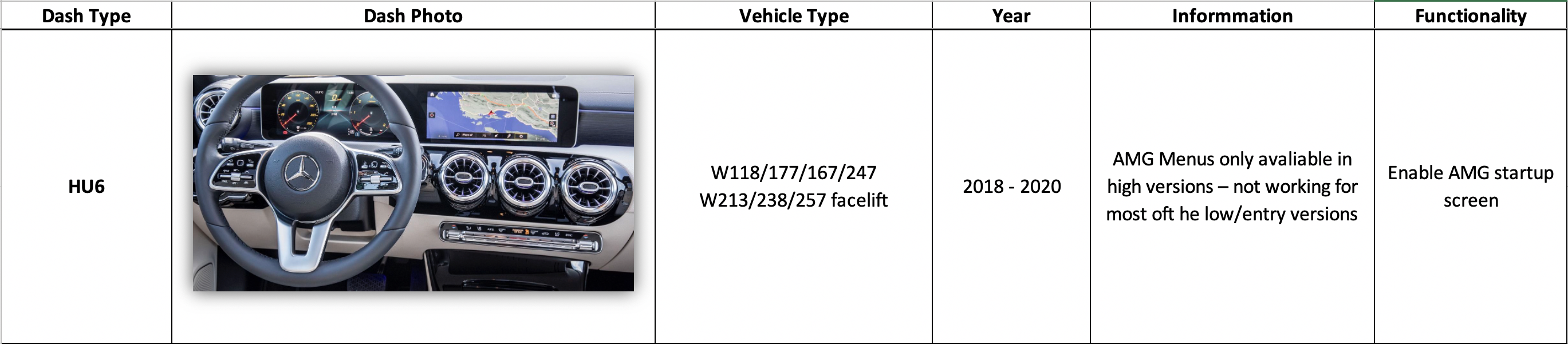

HU6 -> W118/177/167/247; W213/238/257 facelift Click here for more info
Here you can see other videos made in real cars:
W222 - AMG activation - https://youtu.be/1t9vl3zKYI8
W204 - AMG activation - https://youtu.be/M2eBKOvJZug
W463 - AMG activation - https://youtu.be/JzucrYaNlFs
W218 - AMG activation - https://youtu.be/Mn-eEsCmuM4
W221 - AMG and BRABUS activation - https://youtu.be/T0MNIXpJWy0
IC213 - AMG activation - https://youtu.be/L3dGhnWL8D0
IC213 - AMG activation - 2 variants - https://youtu.be/VYlOFRI7-1s

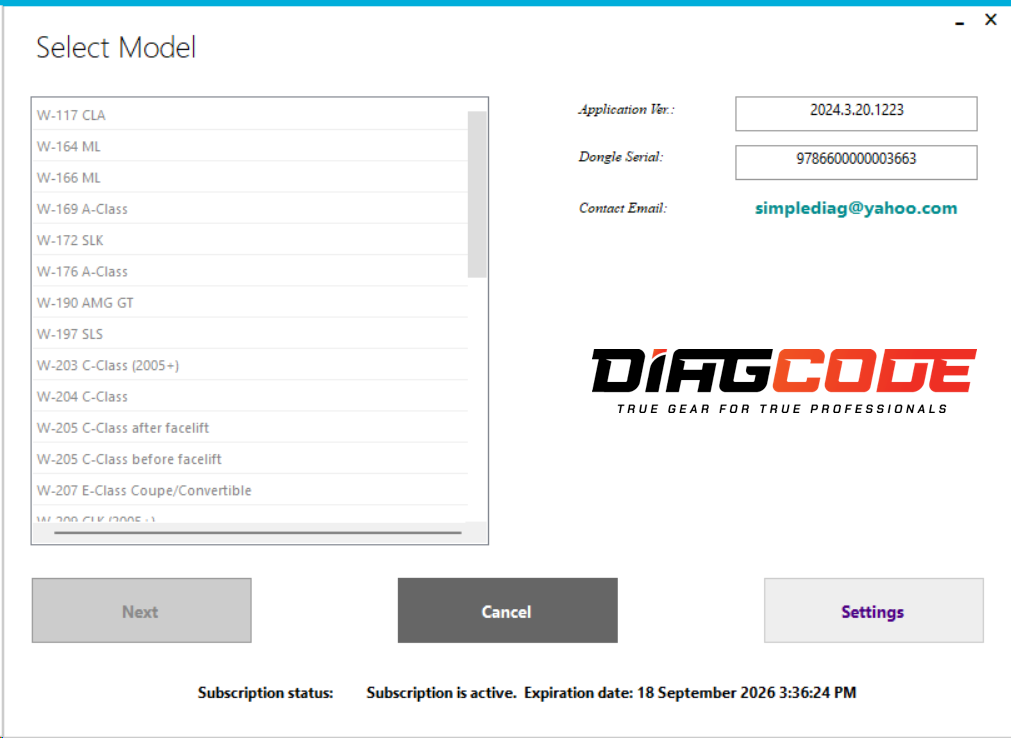

SD13 -> MB Dash Renew
FUNCTIONALITY: Basically this software is designed for customers who want to make renew of MB instrument clusters. Once the cluster is in "virgin state" - the kilometers are zero and drive authorisation data is also reset (in other words - synchronization between Instrument clusters and EZS (FBS3 or FBS4 is broken). Dashboards can also be learned with DAS/Xentry after renew procedure.The new LCD clusters are also powered up on bench with functions to see real Picture when working on bench. The following functions are available in the software:
* Read/Write eeprom by OBDII or on bench (Also standalone without Gateway on bench for some clusters)
* Renew IC function
* Learn IC function
* Read SSID from EZS
COMPATIBILITY: Mercedes-Bez

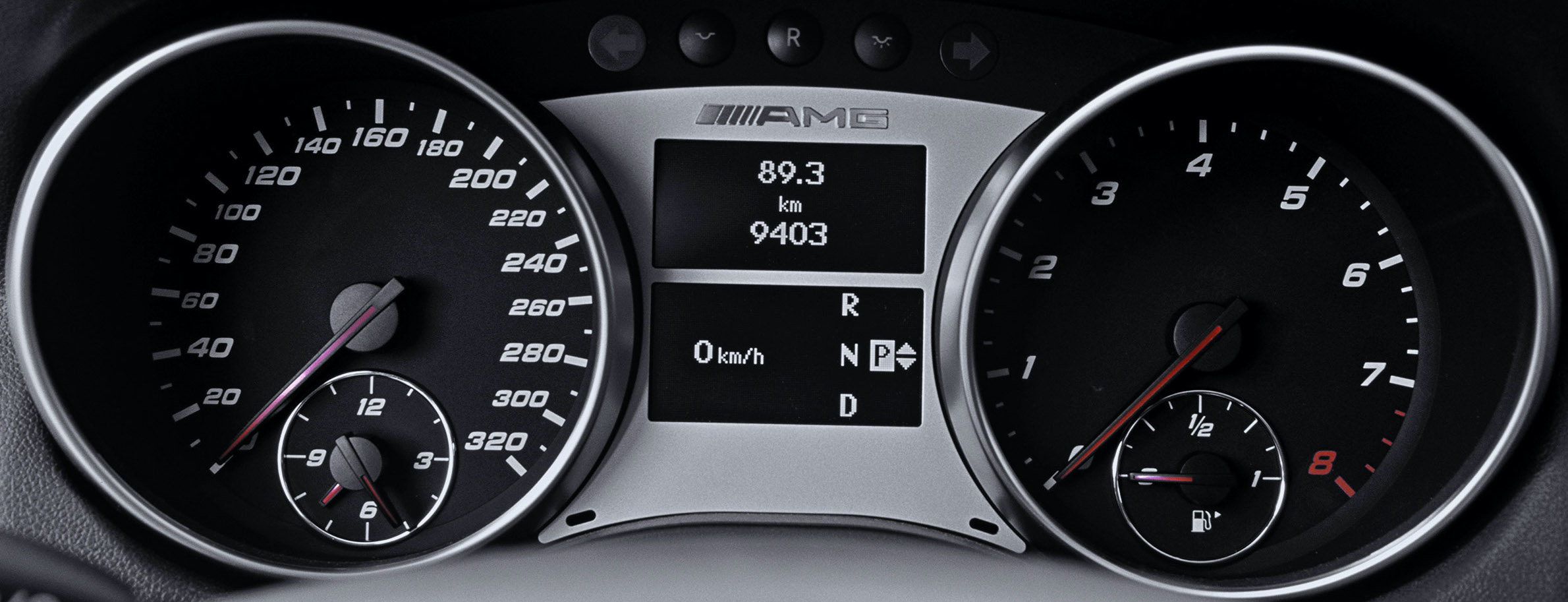

KI 164 -> ML(W164); GL(X164) -> Year (2006-2010) -> Click here to see Dash photo

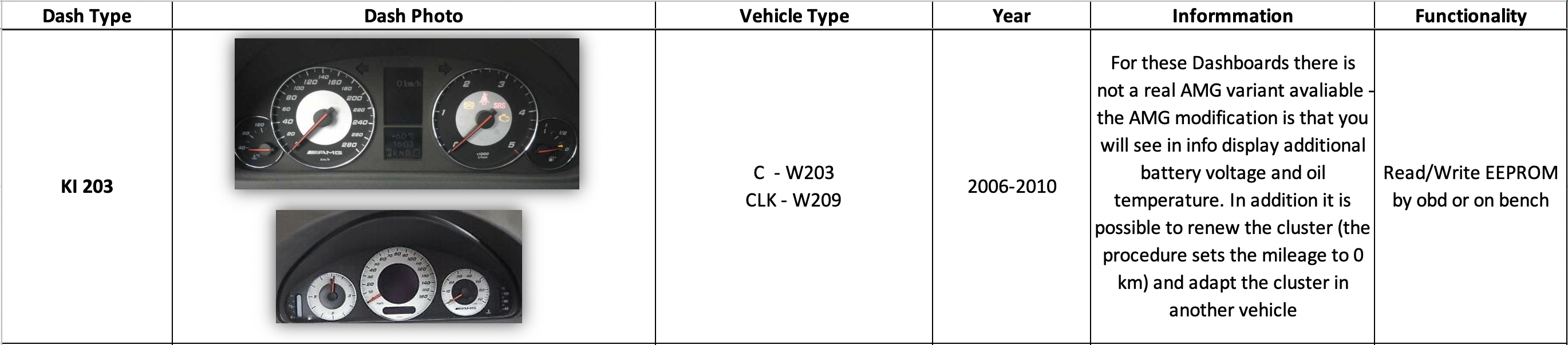

KI 203 -> C(W203); CLK(W209) -> Year (2006-2010) -> Click here to see Dash photo
KI 211 -> E(W211); CLS(C219); CLK(W209); G(W463) -> Year (2005-2010) -> Click here to see Dash photo

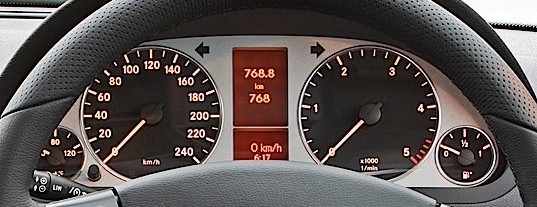

KI Low -> A(W169); B(W245) -> Year (2005-2011) -> Click here to see Dash photo

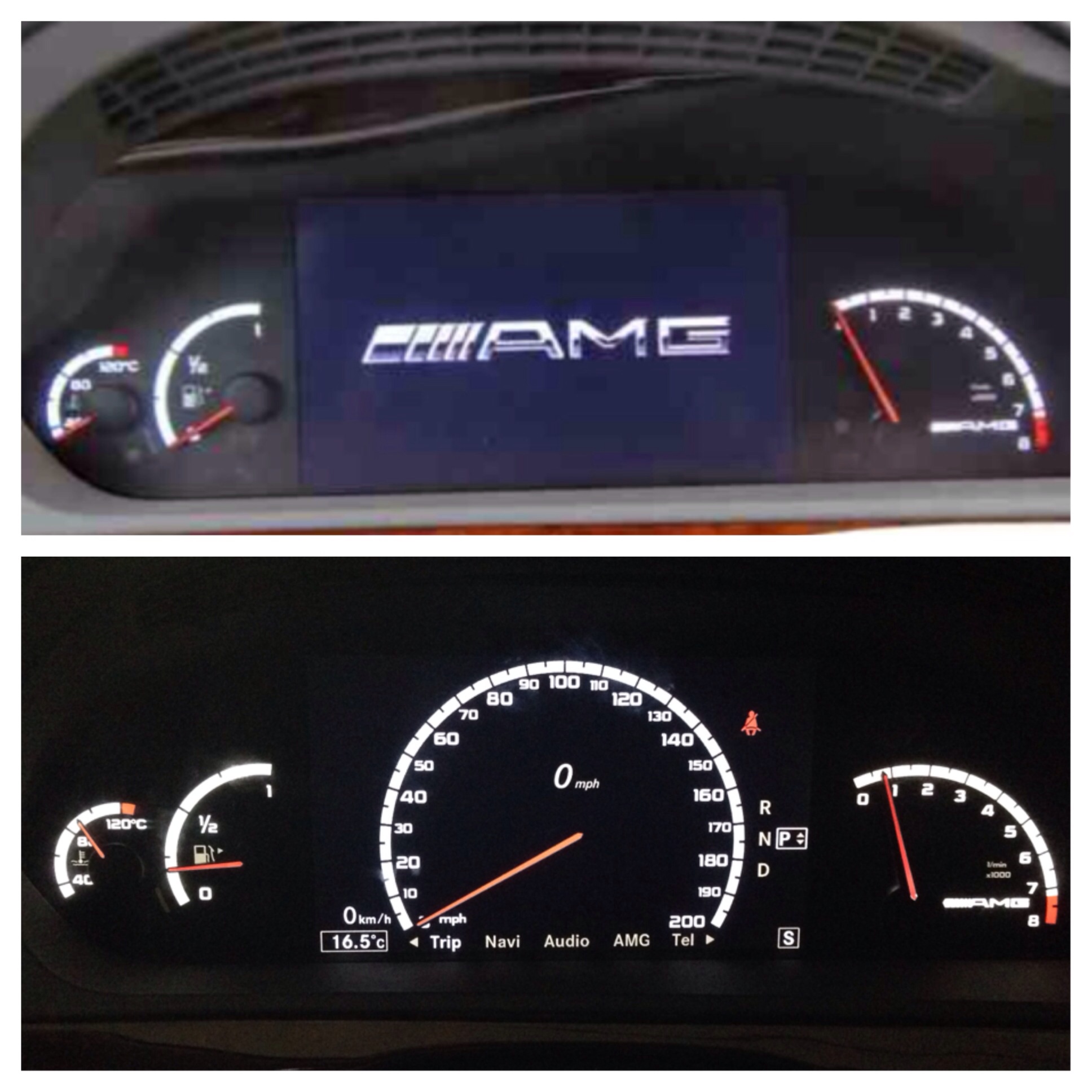

KI 221 -> S(W221); CL(C216) -> Year (2005-2013) -> Click here to see Dash photo

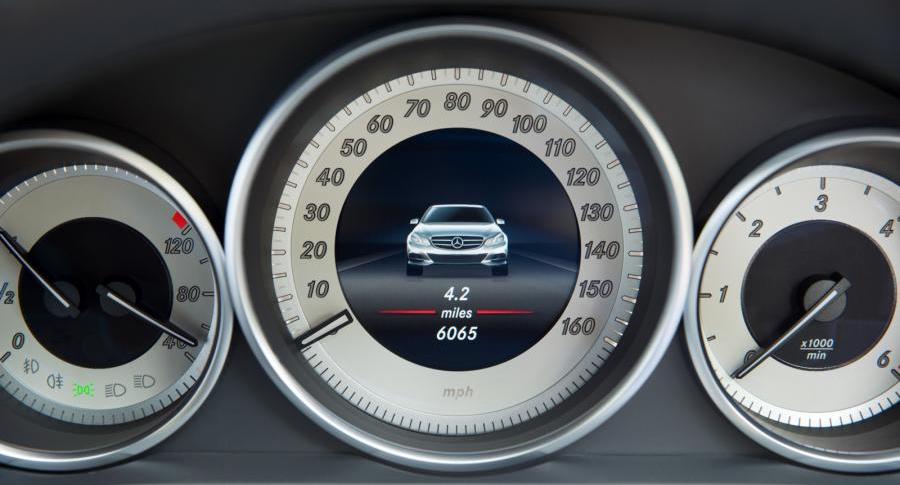

IC 204 -> C(W204); GLK(X204); SLS(W197); SL(W231); E(W212); CLS(W218) -> Year (2007-2018) -> Click here to see Dash photo

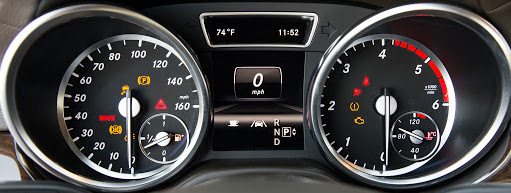

IC 172 -> G(W463 2013-2017); GLS/ML/GLE(W166/292); A/GLA/CLA(W117/156/176); B/GLK (W246/X204); SLK/SLC(W172); SL(R231) -> Year (2011-2019) -> Click here to see Dash photo

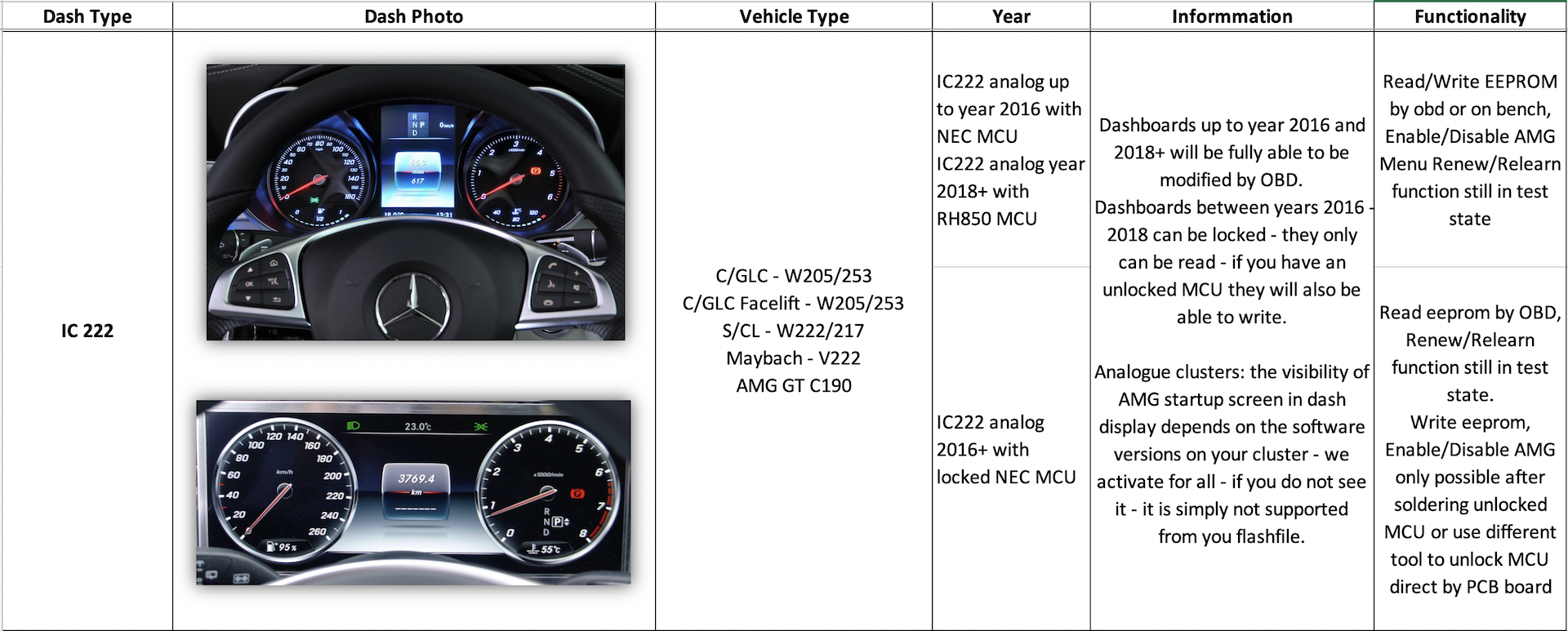

IC 222 -> C/GLC(W205/253); C/GLC Facelift(W205/253); S/CL(W222/217);Maybach(V222); AMG GT(C190) -> Year (2013-2018) -> Click here to see Dash photo

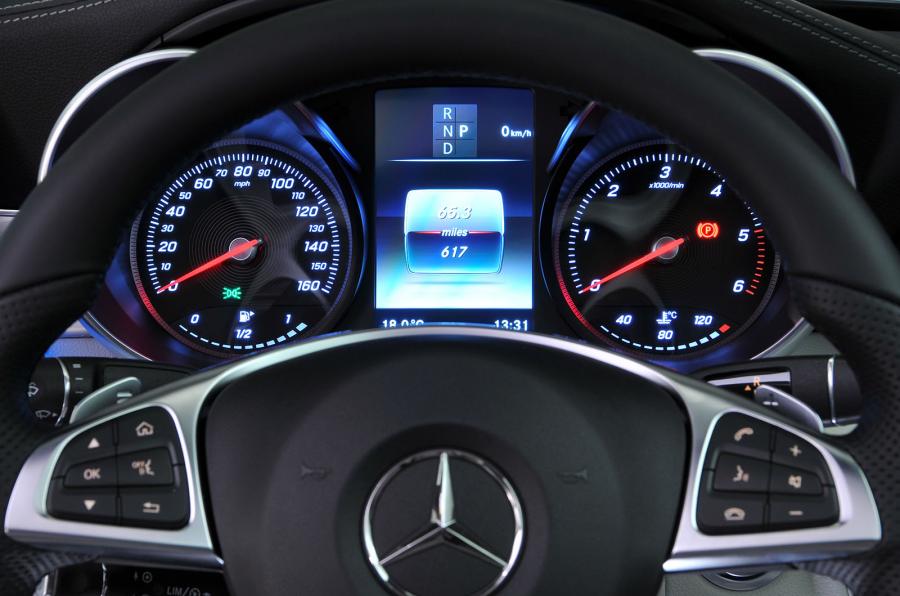

IC222 (MCU type NEC V850) - Analog (W205/W253 - 2016-2019) FULLY BY OBDII !!!

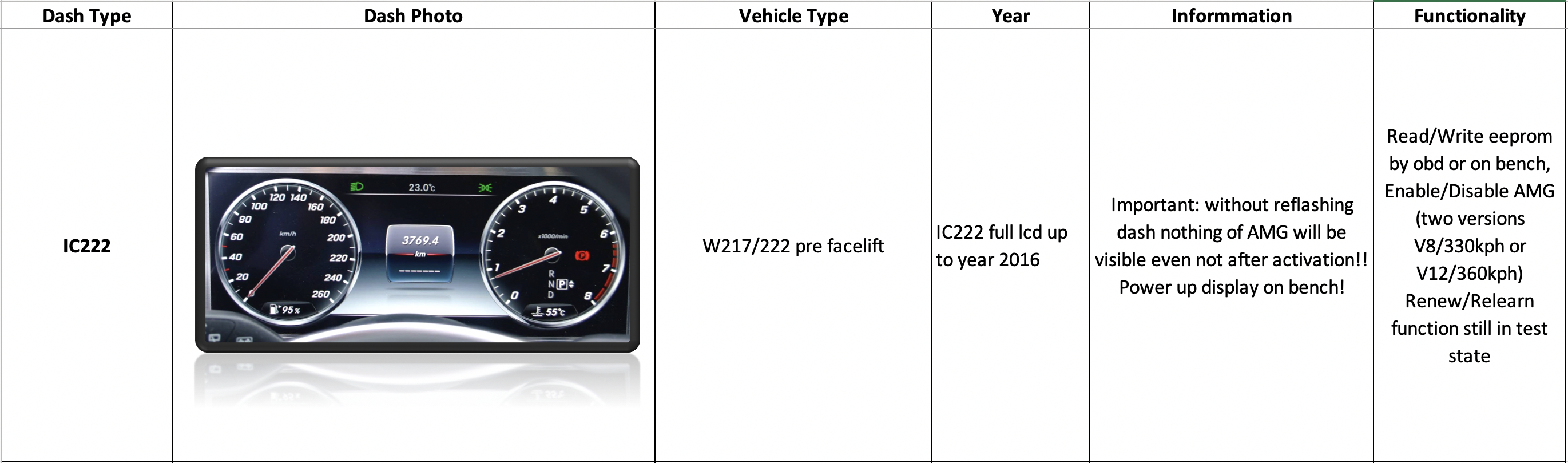

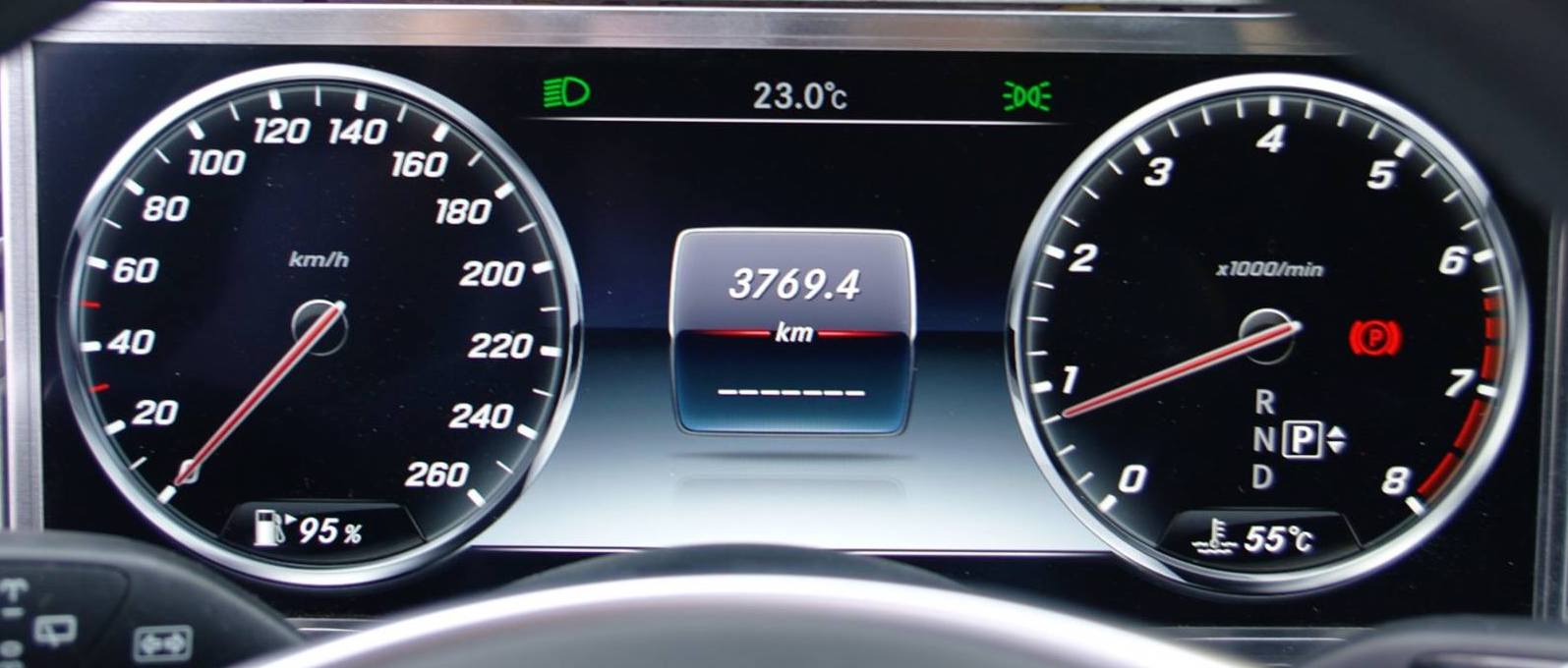

IC 222 -> W217/222 pre facelift up to 2016 -> Click here to see Dash photo

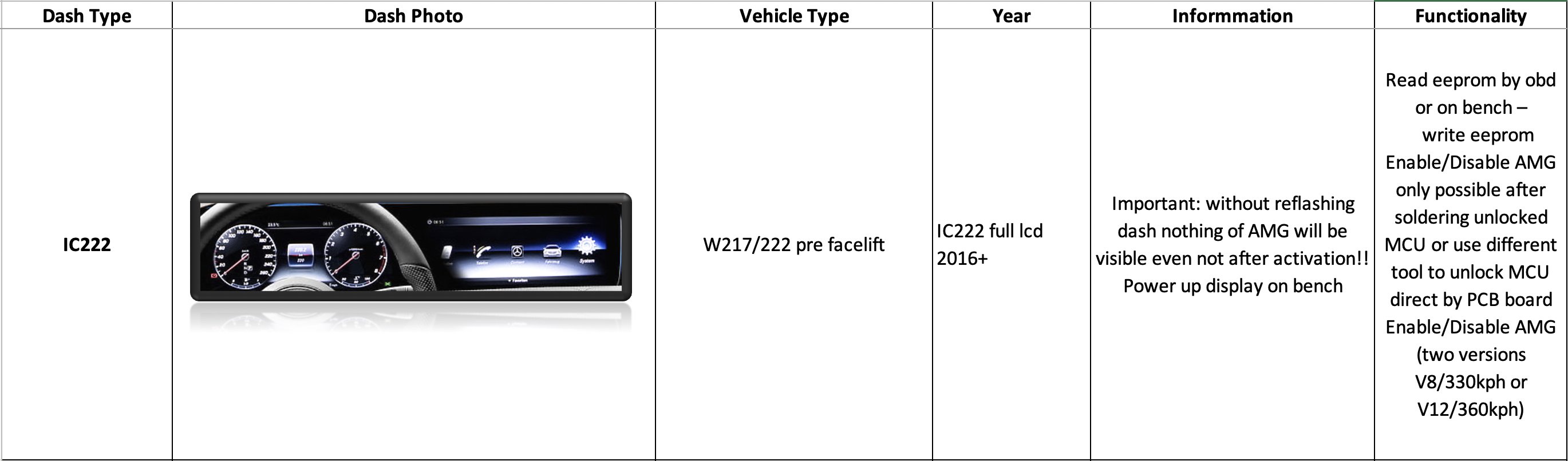

IC 222 -> W217/222 pre facelift -> Year (2016-2019) -> Click here to see Dash photo
IC222 (MCU type NEC V850)- Full LCD (W222/W217 - 2016-2018)

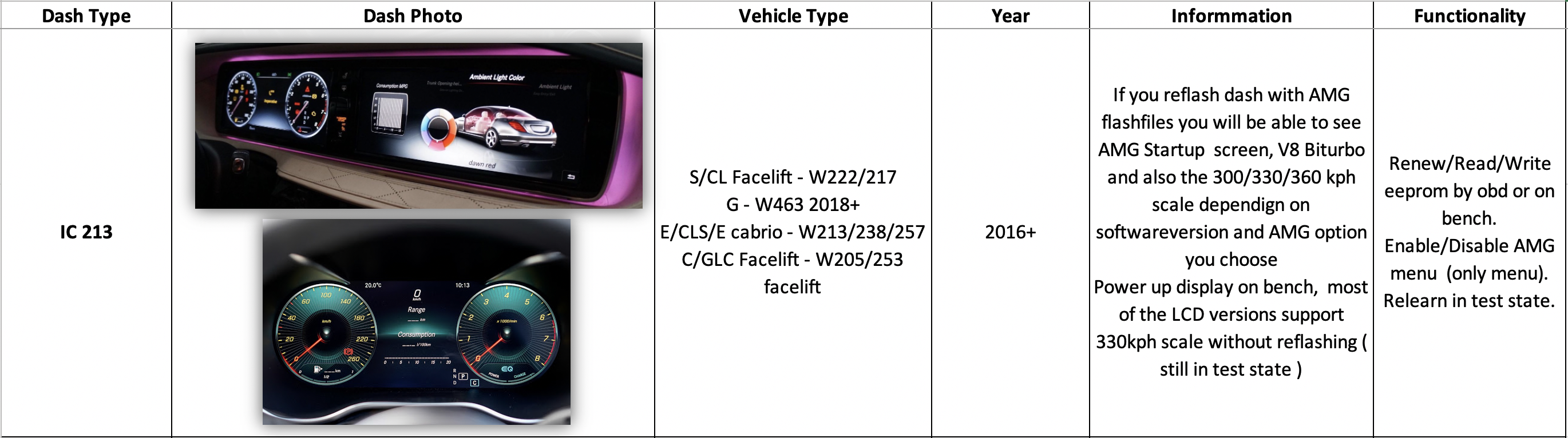

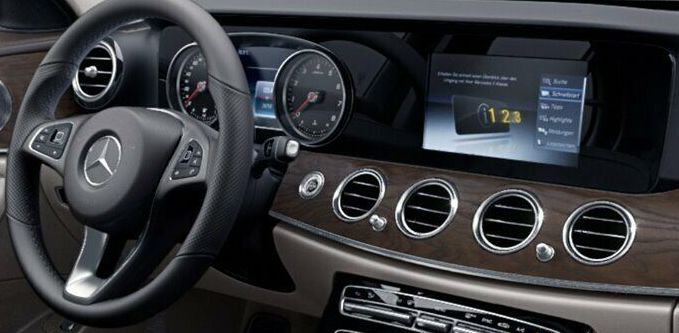

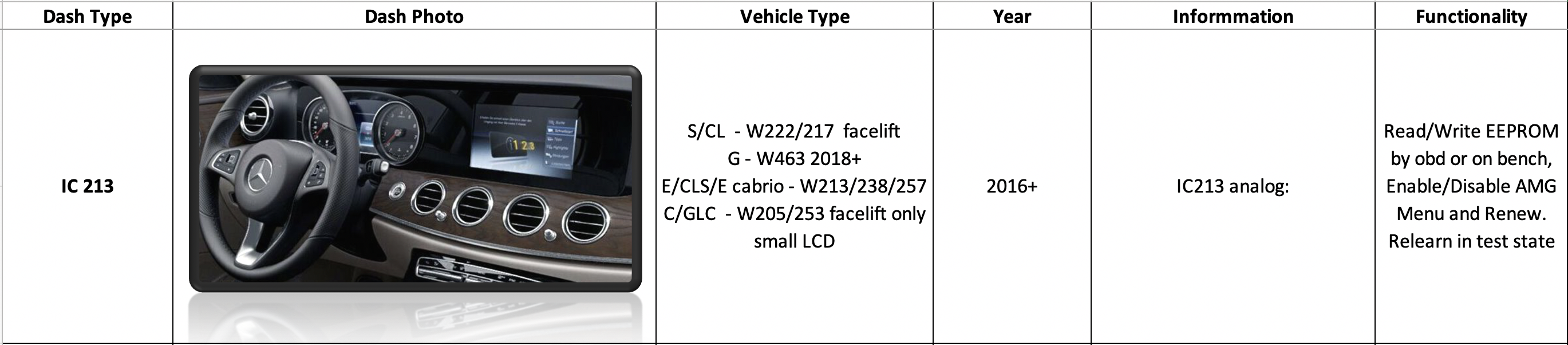

IC 213 analog -> S/CL(W222/217) Facelift; G(W463 - 2018+); E/CLS/E cabrio(W213/238/257); C/GLC(W205/253 facelift only small LCD) -> Click here to see Dash photo
IC 213 FULL LCD-> S/CL(W222/217)Facelift;G(W463 - 2018+);E/CLS/E cabrio(W213/238/257);C/GLC(W205/253 facelift) -> Click here to see Dash photo

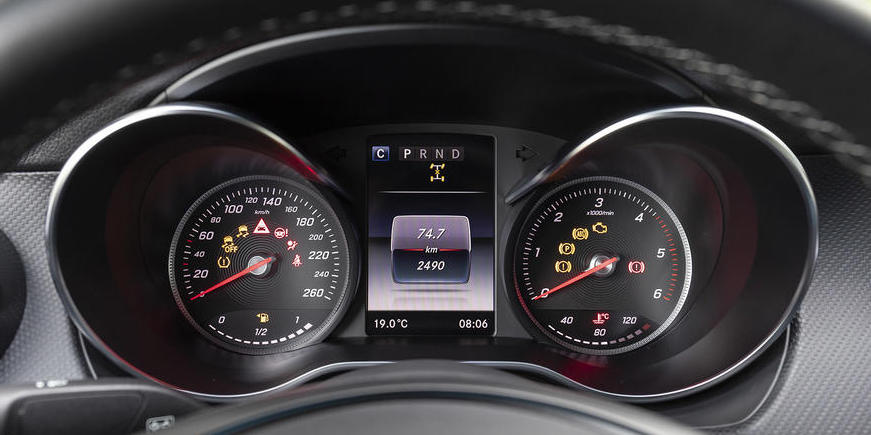

IC470 (MCU type NEC V850) - Continental (W470 X-class pickup - 2016-2020) -> Click here to see Dash photo

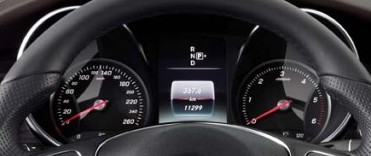

IC447 (MCU type NEC V850) - Continental (W447/W448 - 2016-2020) -> Click here to see Dash photo

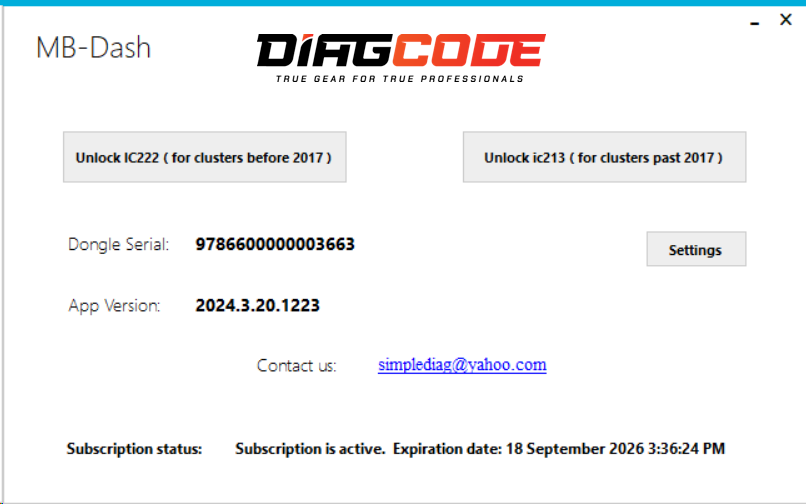

SD12 -> MB Dash Unlocker
FUNCTIONALITY: Unlocks dashboards IC213/IC222 that have timeout for seed key input active.
COMPATIBILITY: Support for IC213 and IC222 in following models: W205/253/190/290/222/217/213/238/257/463
This is a Software Designed to use together with vediamo/dts/xentry or a simply can device with manual command prompt, that unlocks dashboards IC213/IC222 that have timeout for seed key input active and Not possible to unlock by manual typing seed key.
With help of this Tool you can simultaneously connect with diagnostic, and proceed the unlock, after this you can proceed with manual command prompt like you already know from previous models. Support for IC213 and IC222 in following models: W205/253/190/290/222/217/213/238/257/463.
Also IC222 after year 2016 are possible for reading but writing will be locked for the most of them.
Analogie IC222 after year 2018 will be fully unlocked again

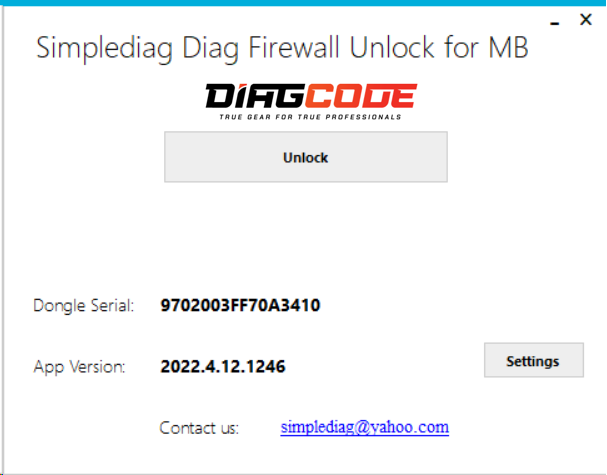

SD14 -> MB Diagnostic Firewall Unlock
FUNCTIONALITY: EZS Firewall disable
COMPATIBILITY: W907/118/177/167 and W213/238/257/463/290 years 2019 and later
This is a Software Designed to use together with Vediamo/DTS Monaco/Xentry on latest MB vehicles - W907/118/177/167 and W213/238/257/463/290 years 2019 and later. In these vehicles you will not be allowed to make adaptations or variantcoding without or else diagnostic functionality. The tool should be used with OBD2 Y-Adapter - it will disable the Firewall and autodetects if Firewall is active in Vehicle and the type that is used for unlock. All customers who want to do advanced diagnostic in latest MB cars need to use that software.

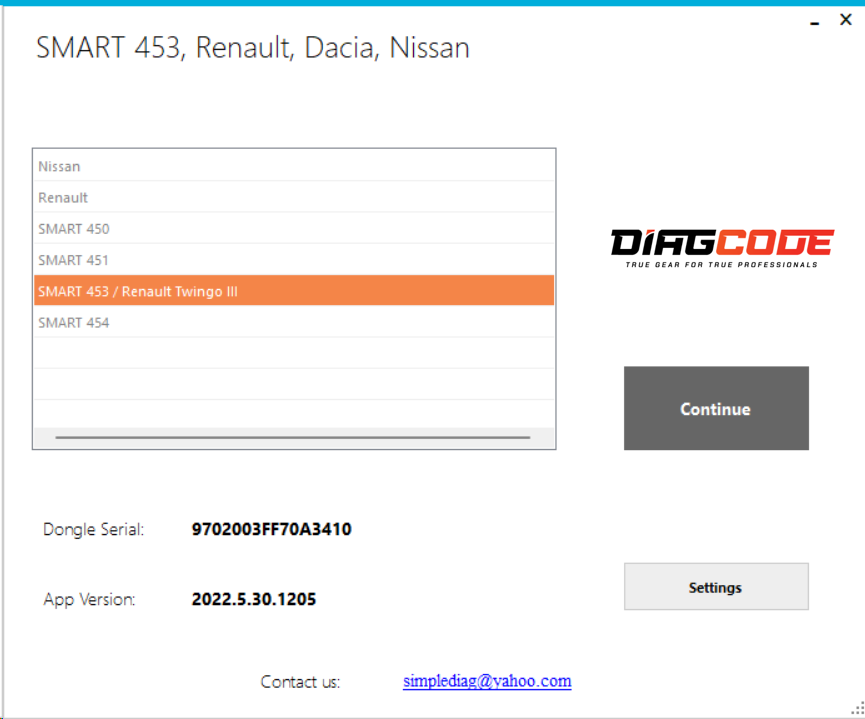

SD10 -> Smart 451, 454, 453/Twingo 3 tool
FUNCTIONALITY: Key programing, Odometer Correction, Read/Write flash, Clear Crash Data
COMPATIBILITY: Smart 451, 454, 453 and Renault Twingo 3
Software for Smart 451, 454, 453 and Renault Twingo 3 vehicles. With this software you have this functionality:
- Smart 451 - Key programing (Add key or All keys lost)
- Smart 454 - Key programming (Add key or All keys lost)
- Smart 453/Twingo 3 - Key programming ( if you have wokring key), Odomneter correction (monochrome diaplay only), Read/Write VIN, Read/Write flash, Service Reset
- Clear Crash data by OBDII - SPC560 Continental, RH850 Renault, CX23xx Autoliv RC7
- Steering Column - Clear Immo - Clio III, Megane III, Modus, Scenic III, Twingo III

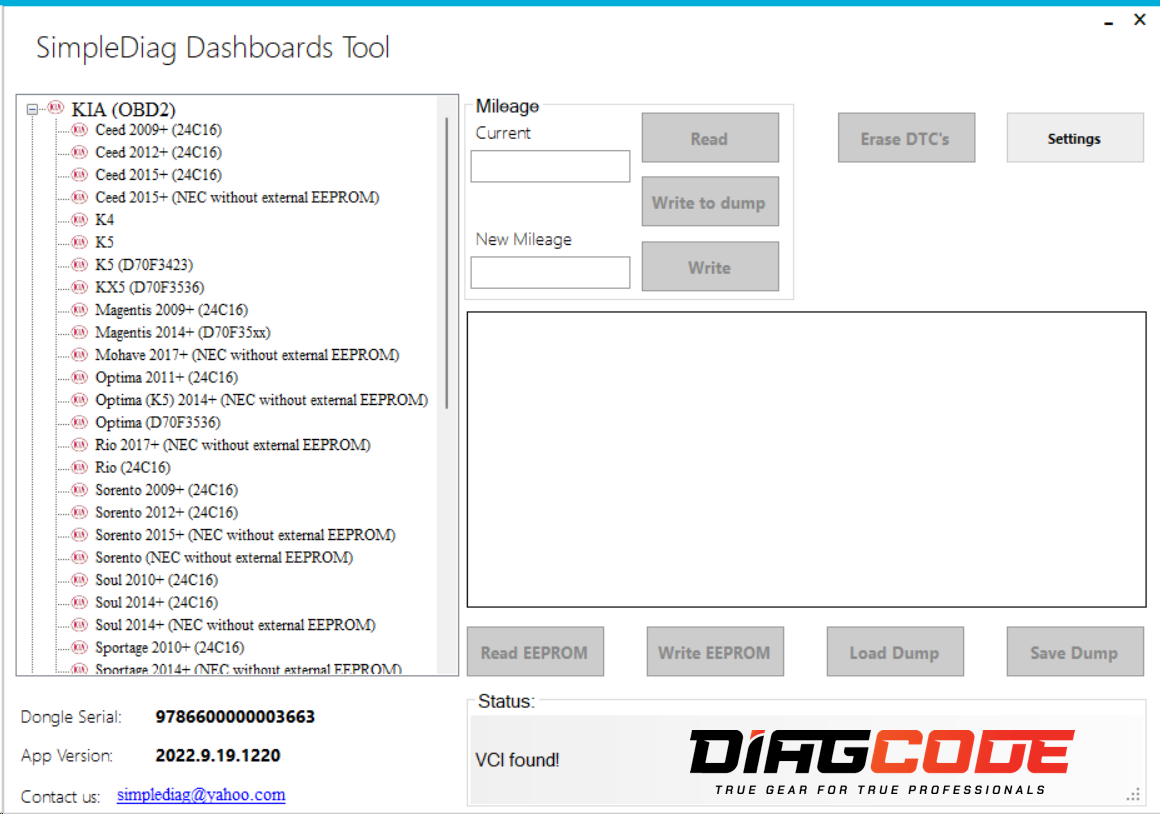

SD11 -> Simplediag - Odometer package
FUNCTIONALITY: Odometer Correction
COMPATIBILITY: Kia, Hyundai,
KIA: Ceed 2009+; Н4; K5; KX5; Magentis 2009+; Mohave 2017+; Optima 2011+; Optima (K5) 2014+; Optima (D70F3536); Rio(24c16); Rio 2017+; Sorento 2009+(24c16); Sorento 2012+(24c16); Sorento (nec without ext eeprom); Soul 2010+(24c16); Soul 2014+(24c16); Soul (nec without ext eeprom); Sportage 2010+(24c16); Sportage 2014+( nec without ext eeprom); Sportage 2015+(24c16); Sportage 2016+ (Yazaki nec+25160); Sportage 2016+( nec without ext eeprom)
Hyundai: Accent 2010+(24c16); Accent 2018+( D70F3536); Azera (D70F3536); Creta (nec without ext eep); Elantra (D70F3536); Genesis 2014+(nec without ext eep); Getz (24c16); HB20 (D70F3536); I20 2010+(24c16); I20 2010+(24c16v2); I20 2014+(nec without ext eep); I20 Elite; I25 (24c16); I30 2015+(nec without ext eep); Mistra 2015+ (D70F3536); Tucson 2014+; Solaris 2010+(24c16); Solaris (nec without ext eep); Sonata 9 (D70F3536); Grandeur 2012+(24c16); Verna(24c16); Veloster(24c16); Veracruz 2011+(nec)
Hyndai/Kia ECU: EDC15C2, EDC15C7, EDC17C08, EDC17C57
Great Wall: Haval H6, H8, H9
Proton: Previa, Preve 2012+
SsangYong: Actyon(24c16)
Nissan: Terrano(9s12XHY256); Altima 2013+(Nec+24c16); Serena 2011+(Nec+24c16); Leaf 2011+(Nec+24c16); Teana 2014+(Nec+24c16); Pathfinder 2014+(Nec+24c16)
Renault: Megane 3(Fujitsu 96F386+95160); Megane 3(Fujitsu 96F387+95160); Fluence(Fujitsu 96F386+95160); Fluence (Fujitsu 96F387+95160);
Dacia: Logan 2(9s12XHY256); Logan 2 v2(9s12XHY256); Logan 2 v3(9s12XHY256); Sandero 2(9s12XHY256); Duster 2(9s12XHY256); Duster 2 v2(9s12XHY256); Duster 2 v3(9s12XHY256); Duster 2 v4(9s12XHY256)
Mitsubishi: ASX 2014+ 8100B951(NEC 70F3529); ASX 2014+ 8100B961(NEC 70F3523); Outlander 8100B895 (NEC+93C76); Outlander 8100B889 (NEC+93C76); Outlander 8100C292 (NEC+93C76); Outlander 8100B197 (91F223+93C86); Lancer X, ASX 8100C051 (91F223+93C76); L200 2017+
Toyota: Auris VDO 2012+(24C16); Auris VDO 2015+(70F35xx); Avensis VDO 2013+(24C16); Avensis VDO 2015+(70F35xx); Corolla VDO 2013+(24C16); Corolla VDO 2015+(70F35xx); Yaris 2017+ (91F061)
Mahindra: Mahindra NuvoSport N8 2015+
Fiat: 500L
Jeep: Renegade 2014+
SD18 -> Simplediag - Key Programmer
FUNCTIONALITY: Key programing
COMPATIBILITY: SsangYoung - Rexton XDi (2001-2008)
Key programming software that works with Simplediag hardware. Step by step, we will add programming functionality to different makes and models of cars. Supported models are:
SsangYoung - Rexton XDi (2001-2008)

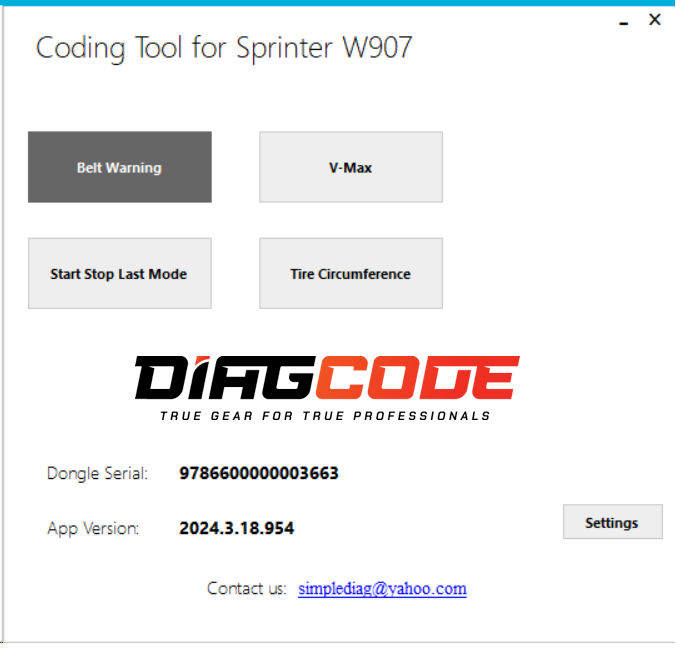

SD23 -> Coding Tool for Sprinter W907
FUNCTIONALITY: Seat Belt(Enable/Disable), Vmax value - Read/Set
COMPATIBILITY: Mercedes Sprinter W907/W910
Software functionality - can be used on all sprinter W907/910 year 2018-2022. Following engines are supported: OM651, OM642 - software is able to read and change following vehicle parameters: Seat Belt reminder (Enable/Disable), VMAX value - Read/Set to specific speed ( range 1-175km/h), Read/Change option of Start/Stop system from standard to last mode memory, and Read/Change the tyre circumferrence to the specified circumferrence in mm. Software has option to manually input coding strings.
All prices are exclusive of VAT and delivery charges
