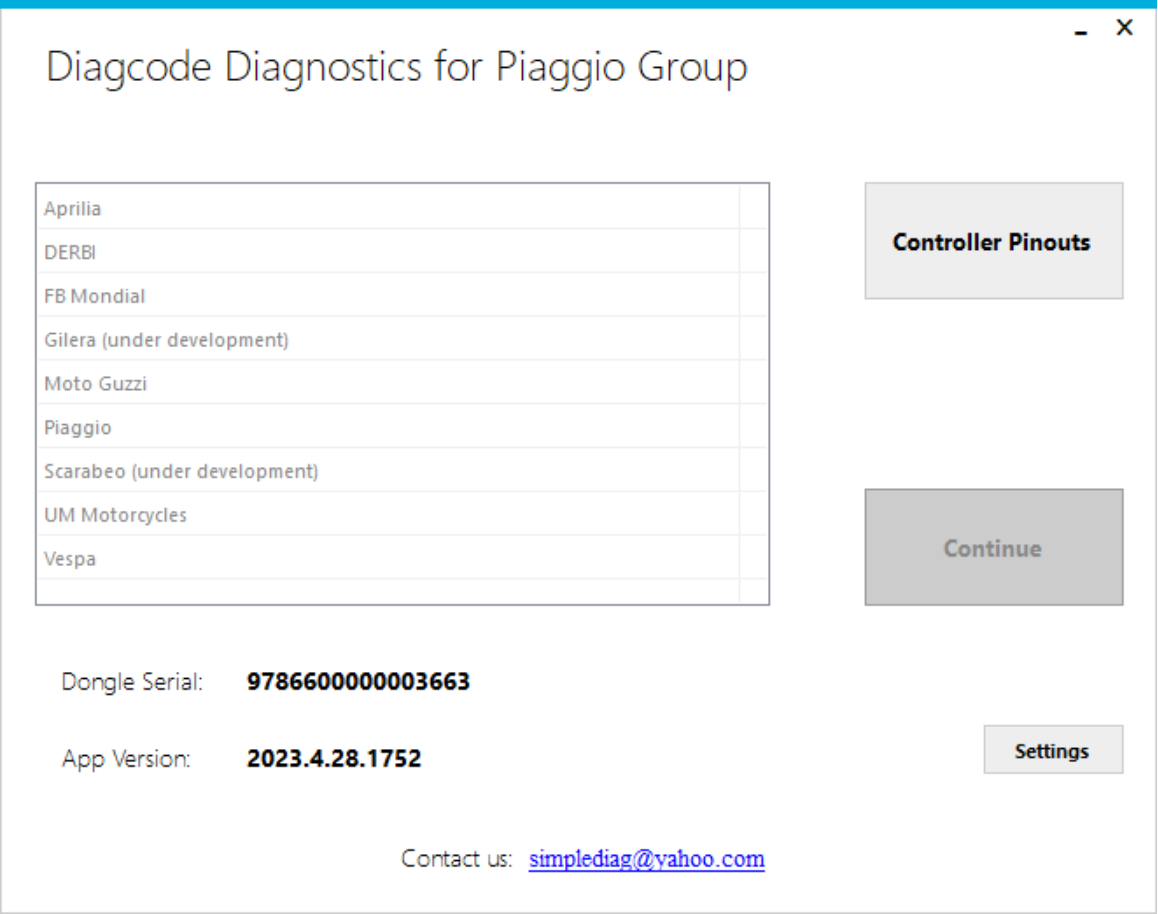

Diagcode Diagnostics for Piaggio Group

 Various programming tasks specifically for Piaggio Group

 The software is purchased once - no time limit, subscriptions or hidden fees

 Frequent automatic updates included without additional payment

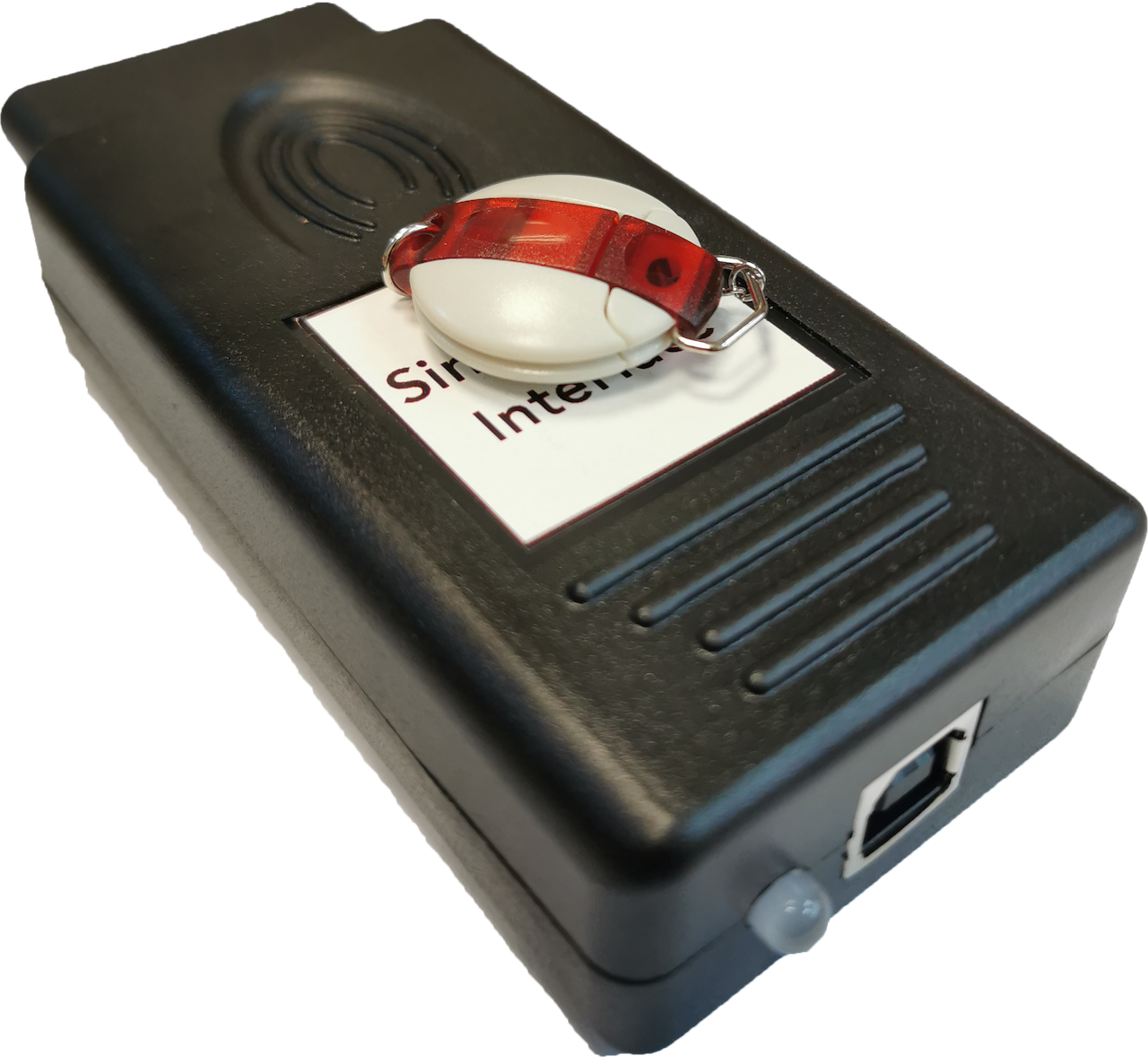

 This software works with J2534 interface

PRICES:

SD22 -> 860 euro

SD22.1 -> 750 euro

SD22+SD22.1 -> 1550 euro

Order Now

All prices are exclusive of VAT and delivery charges

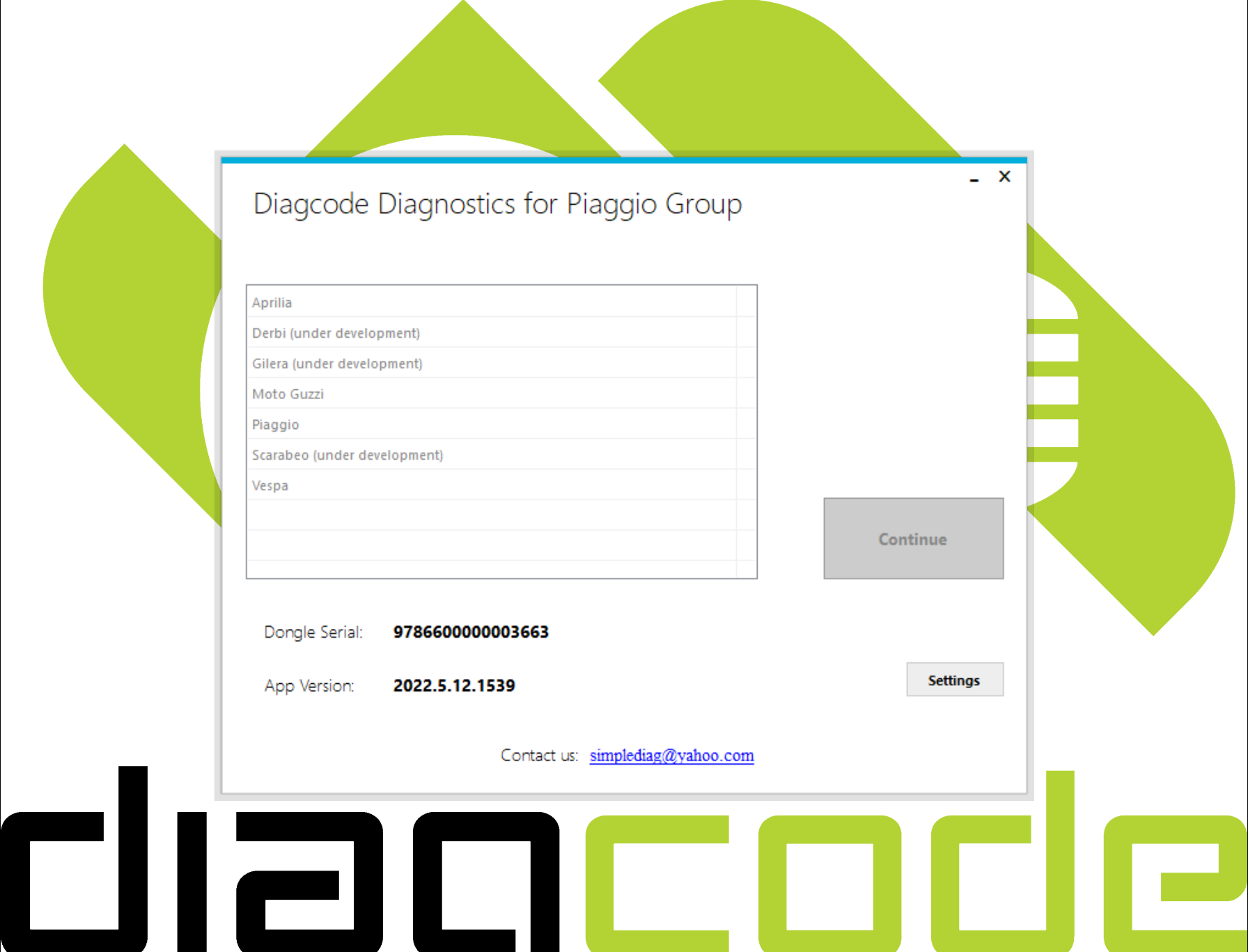

Currently supported Brands:

 Aprilia

 Derbi

 Fantic

 FB Mondial

 Moto Guzzi

 Piaggio

 UM Motorcycles
 Vespa

PRODUCT:

SD22 - Piaggio Diagnostics Toolkit

OVERVIEW:

This software is specially designed for our customers who work with Piaggio Group motorcycles, scooters and mopeds. It is very user-friendly and includes many different features.

COMPATIBILITY AND FUNCTIONS:

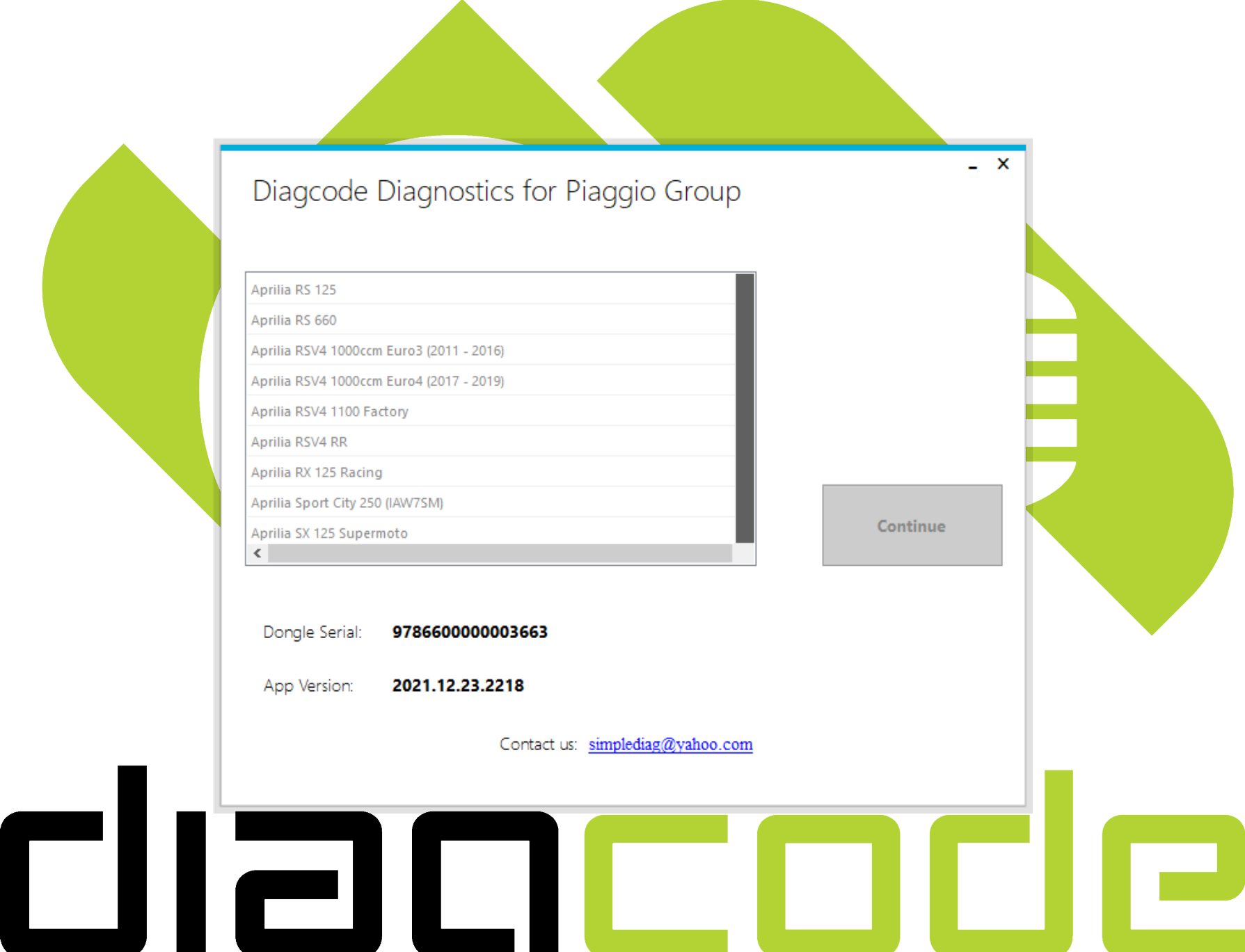

 Aprilia Capnord 1200ccm Euro3 (2011 - 2016) Functions 

 Aprilia Capnord 900ccm Euro4 (2017 - 2020) Functions 

 Aprilia Dorsoduro 1200ccm Euro3 (2013 - 2016) Functions 

 Aprilia RS 125ccm EURO3 (2017–2020) Functions 

 Aprilia RS 125ccm EURO5 (2021+) Functions 

 Aprilia RS 660ccm EURO5 (2020+) Functions 

 Aprilia RS150 (2021+) Functions 

 Aprilia RSV4 1000ccm Euro3 (2011 - 2016) Functions 

 Aprilia RSV4 1100ccm Euro4 (2017 - 2020) Functions 

 Aprilia RSV4 1100ccm EURO5 (2021+) Functions 

 Aprilia RSV4 RR 1100ccm EURO5 (2021+) Functions 

 Aprilia RX 125ccm Racing EURO3 (2017–2020) Functions 

 Aprilia Shiver 900ccm Euro4 (2017 - 2019) Functions 

 Aprilia Sport City 250 (under development) Functions 

 Aprilia SR 125 GT 125ccm EURO5 (2022+) Functions 

 Aprilia SR 200 GT 200ccm EURO5 (2022+) Functions 

 Aprilia SR 200 GT EURO5 (2021+) Functions 

 Aprilia SR Max 125 (2011 – 2014) Functions 

 Aprilia SR Max 300 (2011 – 2016) Functions 

 Aprilia SX 125ccm Supermoto EURO3 (2017–2020) Functions 

 Aprilia SXR 50ccm EURO5 (2021+) Functions 

 Aprilia Tuareg 660ccm EURO5 (2020+) Functions 

 Aprilia Tuono 1000ccm Euro3 (2011 - 2016) Functions 

 Aprilia Tuono 1100ccm Euro4 (2017 - 2020) Functions 

 Aprilia Tuono 125ccm EURO3 (2017–2020) Functions 

 Aprilia Tuono 660ccm EURO5 (2020+) Functions 

 Aprilia Tuono V4 1100ccm EURO5 (2021+) Functions 

 Aprilia Tuono V4 1100ccm RR EURO5 (2021+) Functions 

 Vespa 125ccm models (2014 – 2017) EURO3 Functions 

 Vespa 150ccm models (2014 – 2017) EURO3 Functions 

 Vespa 250ccm models (2014 – 2017) EURO3 Functions 

 Vespa 300ccm models (2014 – 2017) EURO3 Functions 

 Vespa Elettrica Functions 

 Vespa Elettrica 70 km/h Functions 

 Vespa GTS 125 iGET (2017 – 2020) EURO4 Functions 

 Vespa GTS 125 Super iGET (2017 – 2020) EURO4 Functions 

 Vespa GTS 125 Super Racing Sixties (2017 – 2020) EURO4 Functions 

 Vespa GTS 125 Supersport iGET (2017 – 2020) EURO4 Functions 

 Vespa GTS 125 Supertech iGET (2017 – 2020) EURO4 Functions 

 Vespa GTS 125 Supertech iGET 75th Anniversary (2017 – 2020) EURO4 Functions 

 Vespa GTS 125 Touring iGET (2017 – 2020) EURO4 Functions 

 Vespa GTS 300 Euro4 (2017-2019) Functions 

 Vespa GTS 300 Euro5 (2020+) Functions 

 Vespa GTS 300 hpe Functions 

 Vespa GTS 300 hpe super Functions 

 Vespa GTS 300 hpe Super Sport Functions 

 Vespa GTS 300 hpe Super Tech Functions 

 Vespa GTS 300 hpe Super Tech 75th Anniversary Edition Functions 

 Vespa GTS 300 hpe Touring Functions 

 Vespa GTS 300 Super Racing Sixties Functions 

 Vespa Primavera 125 Functions 

 Vespa Primavera 125 (RED) Functions 

 Vespa Primavera 125 75th Functions 

 DERBI GPR 125 (2011 – 2015) Functions 

 Fantic HPS 125 (2019 – 2021) Euro 4 Functions 

 FB Mondial XMF 125 ccm EURO5 (2021+) Functions 

 Moto Guzzi California 1400ccm Euro3 (2012-2018) Functions 

 Moto Guzzi V7 – all types (2011 – 2016) Euro3 Functions 

 Moto Guzzi V7 – all types (2017 – 2020) Euro4 Functions 

 Moto Guzzi V7 (2021+) Euro5 Functions 

 Moto Guzzi V85TT 2019/2020 Functions 

 Moto Guzzi V85TT 2021+ Euro5 11MP Functions 

 Moto Guzzi V9 (2021+) Euro5 Functions 

 UM Motorcycles DSR125 2017 – 2020 Euro3 Functions 

 Piaggio Beverly 125 (2011 – 2016) EURO3 Functions 

 Piaggio Beverly 250 (2012 – 2018) EURO3 Functions 

 Piaggio Beverly 300 (2012 – 2017) EURO3 Functions 

 Piaggio Beverly 350 (2012 – 2014) Functions 

 Piaggio MP3 300 (2012 – 2014) Functions 

 Piaggio Beverly 125 Functions 

 Piaggio Beverly 125 S Functions 

 Piaggio Beverly 300 Functions 

 Piaggio Beverly 300 S Functions 

 Piaggio Beverly 400 S Functions 

 Piaggio Medley 125 Functions 

 Piaggio Medley 125 S Functions 

 Piaggio Medley 150 Functions 

 Piaggio Medley 150 S Functions 

 Piaggio MP3 300 Functions 

 Piaggio MP3 300 Sport Functions 

 Piaggio MP3 400 Functions 

 Piaggio MP3 400 EU5 (2021+) Functions 

 Piaggio MP3 400 Sport Functions 

 Piaggio MP3 500 Sport Advanced Functions 

 Piaggio MyMoover Functions 

 Piaggio Zip 50 Functions 

 Piaggio Zip S 50 Functions 

 X-10 350 (2014 – 2017) EURO3 Functions 

 Vespa Primavera 125 iGet EURO5 (2021+) Functions 

 Vespa Primavera 125 Sean Wotherspoon Functions 

 Vespa Primavera 125 Sport Functions 

 Vespa Primavera 125 Touring Functions 

 Vespa Primavera 50 4T Functions 

 Vespa Primavera 50 75th Functions 

 Vespa Primavera 50 Sean Wotherspoon Functions 

 Vespa Primavera 50 Sport Functions 

 Vespa Primavera 50 Touring Functions 

 Vespa Primavera RED 50 Functions 

 Vespa Sei Giorni II Edition 300 Functions 

 Vespa Sprint 125 iGET Functions 

 Vespa Sprint 125 Racing Sixties Functions 

 Vespa Sprint 125 Sport iGET Functions 

 Vespa Sprint 50 4T Functions 

 Vespa Sprint 50 Racing Sixties Functions 

 Vespa Sprint 50 S Functions 

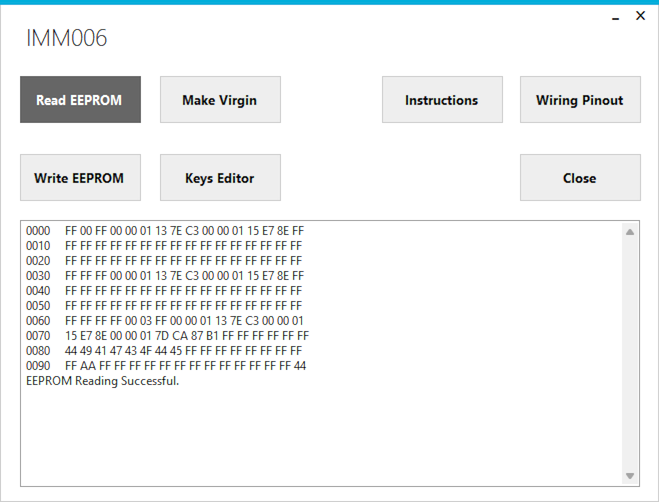

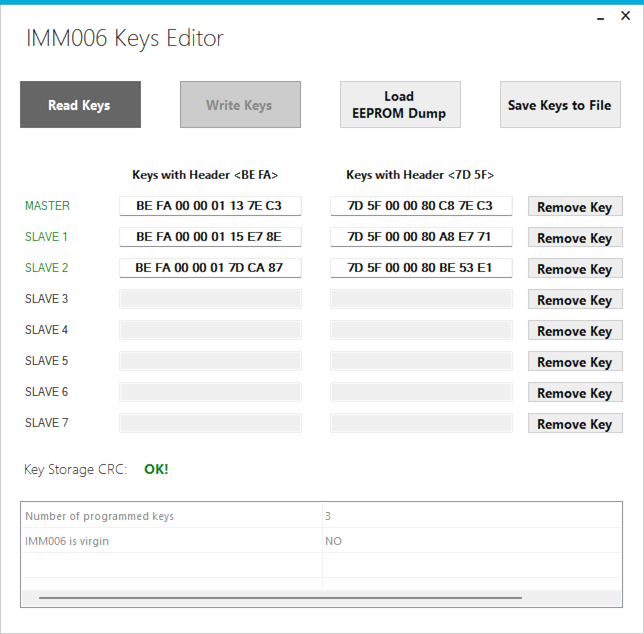

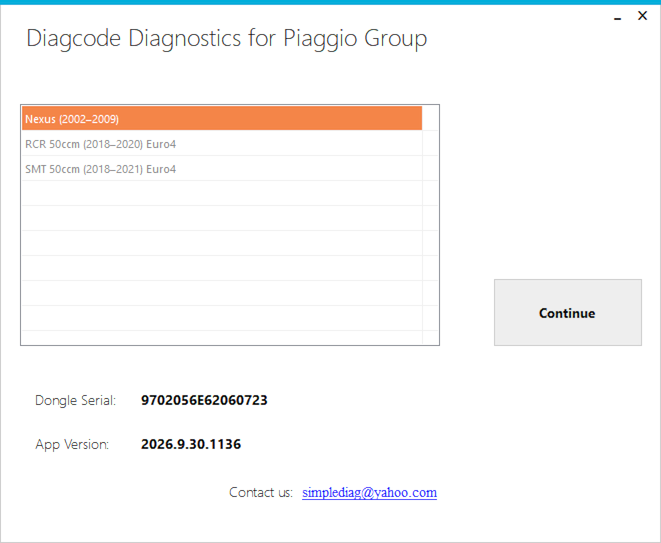

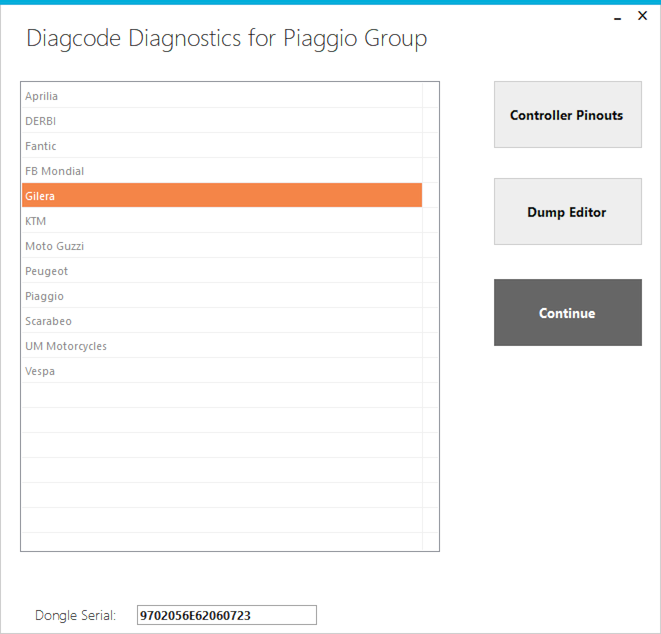

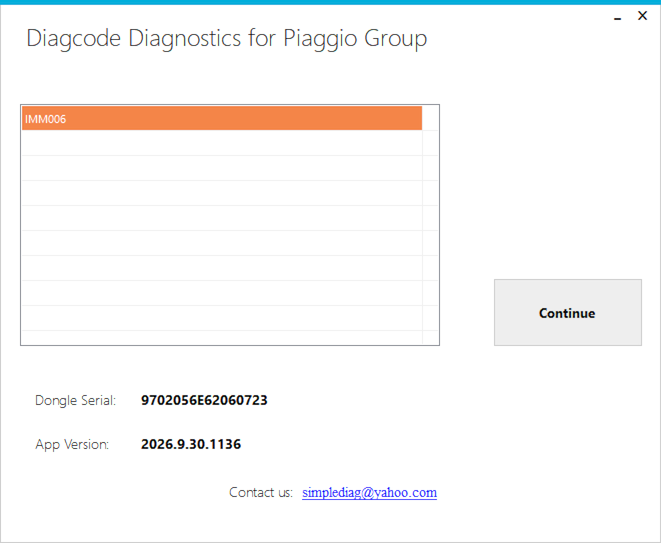

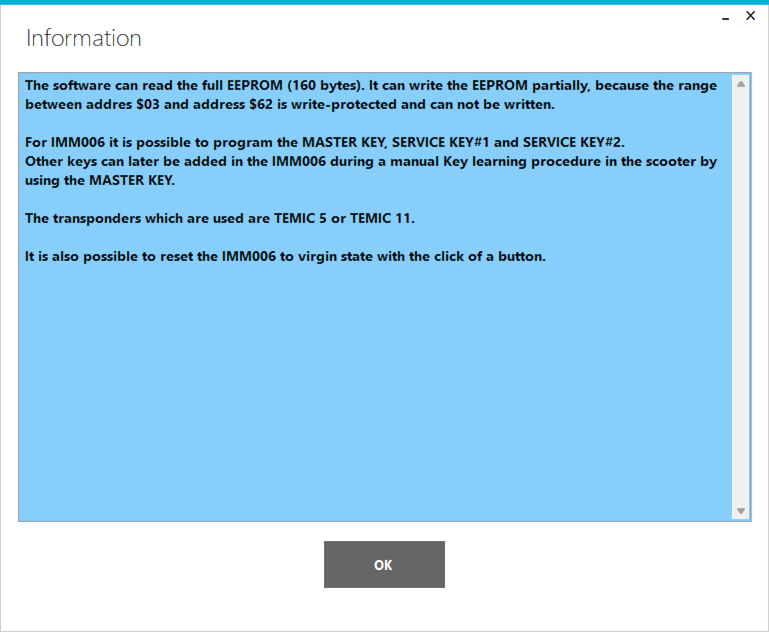

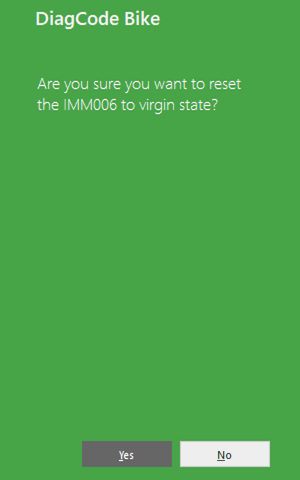

GALLERY:

Software features of SD22:

Current version of the software include Diagnostic and special functions for the models listed below, including of course:

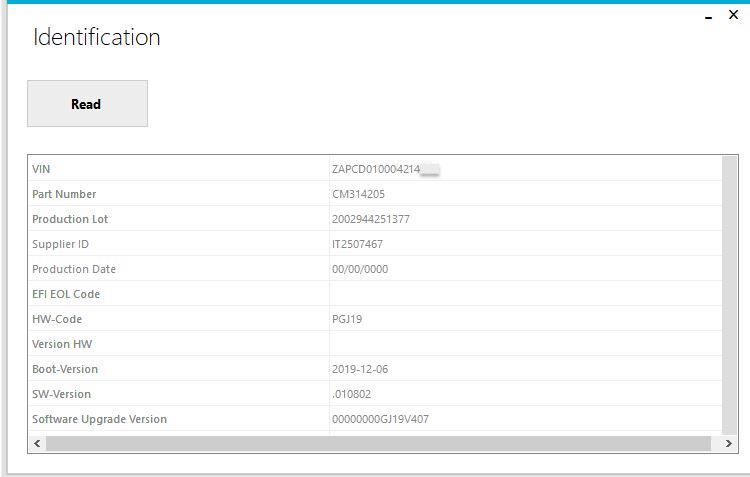

 Read control units identification

 Read and erase DTCs

 Adaptations

 Reset service intervals

 Reset Odometer

"New Features and Functionalities" in the latest update are written in red

Aprilia SX125 125cc 2017-2020

Emission: Euro 4 (K-line)

Year: 2017-2020

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Aprilia RS125 2021+

Emission: Euro 5 (CAN)

Controllers supported:

- Dashboard - Continental LCD dash

- Engine Controller: MArelli MIU G4

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Raise Odometer

- Change units configuration

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- TPS reset

- Set unit Virgin

- Immo OFF (for non keyless types only)

- Read/Write Flash ( also modified flash dumps/Checksum correction )

- Read/Write EEPROM

- ECU Clone

Aprilia SX150 150cc 2021+

Emission: Euro 5

Year: 2021+

Controllers supported:

- Marelli MIUG4

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Program VIN

- Component test of various parts

- Virgin Control Unit

- Read and Write Flash

- Read and Write EERPOM

- Automatic checksum correction of Flash

- Clone ECU

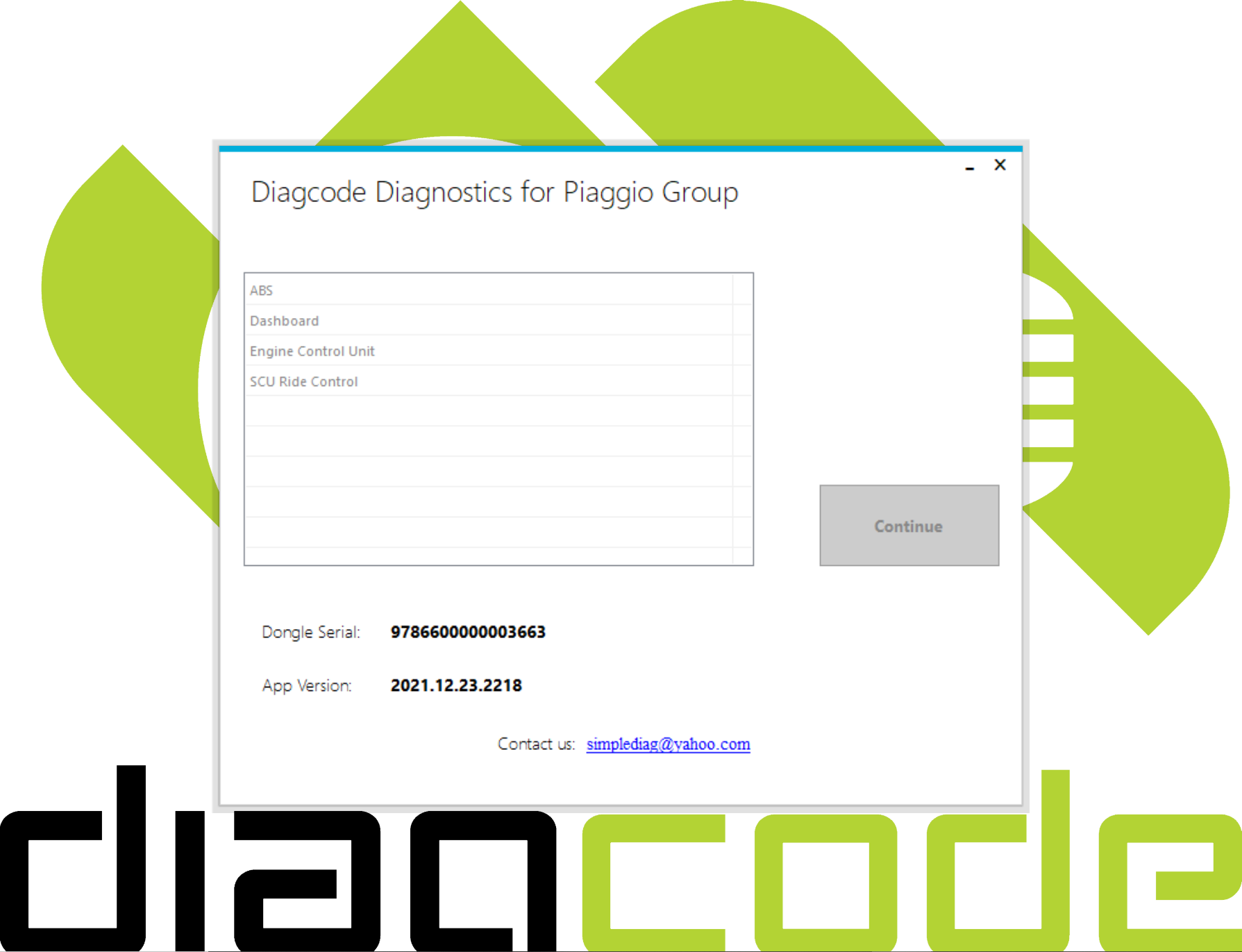

Aprilia RS 660cc 2020+

Emission: Euro 5 (CAN)

Year: 2020+

Controllers supported:

- Engine ECU: Marelli IAW 11MP

- Dashboard: COBO 3 inch

- ABS: Conti MK100

- SCU (suspension controller)

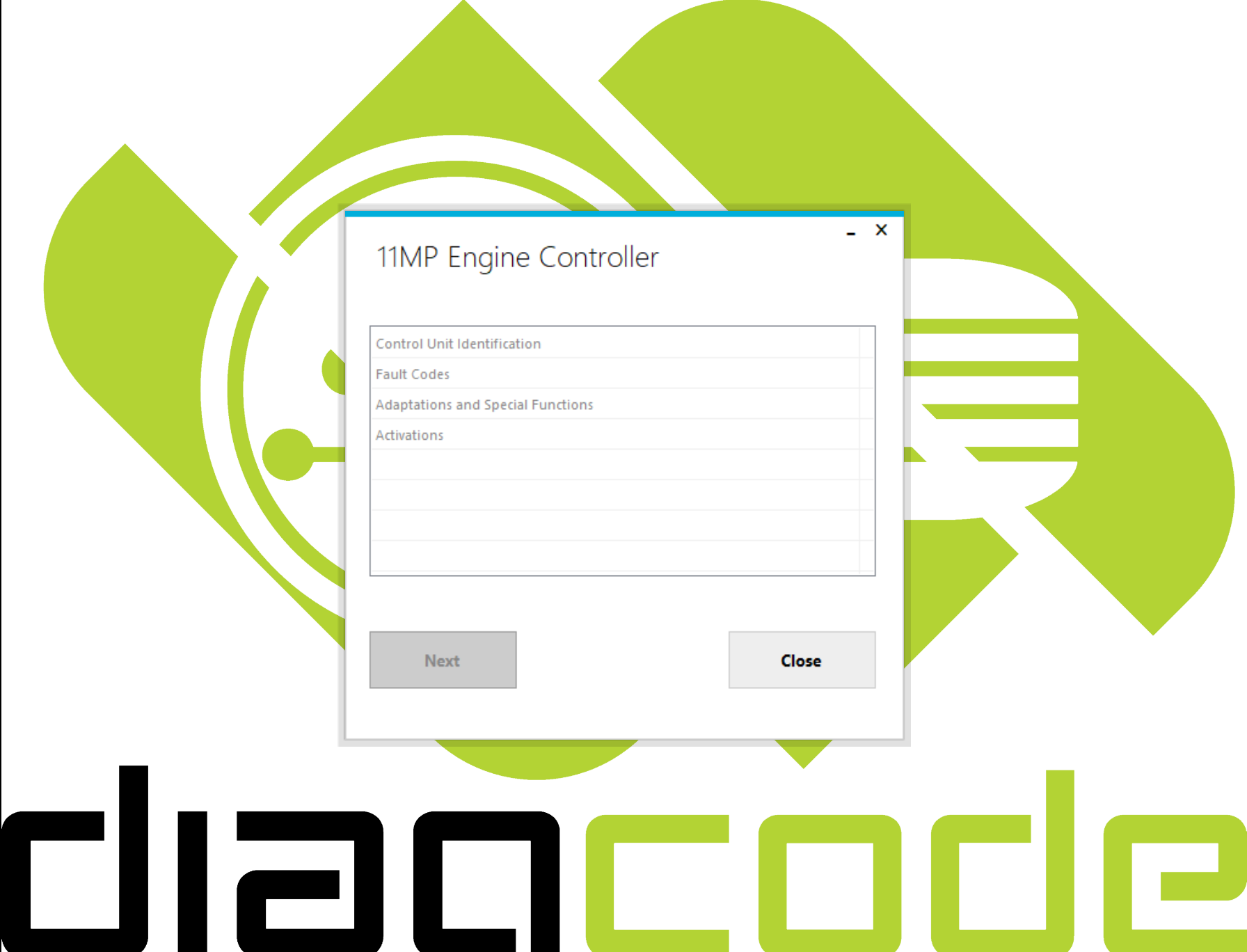

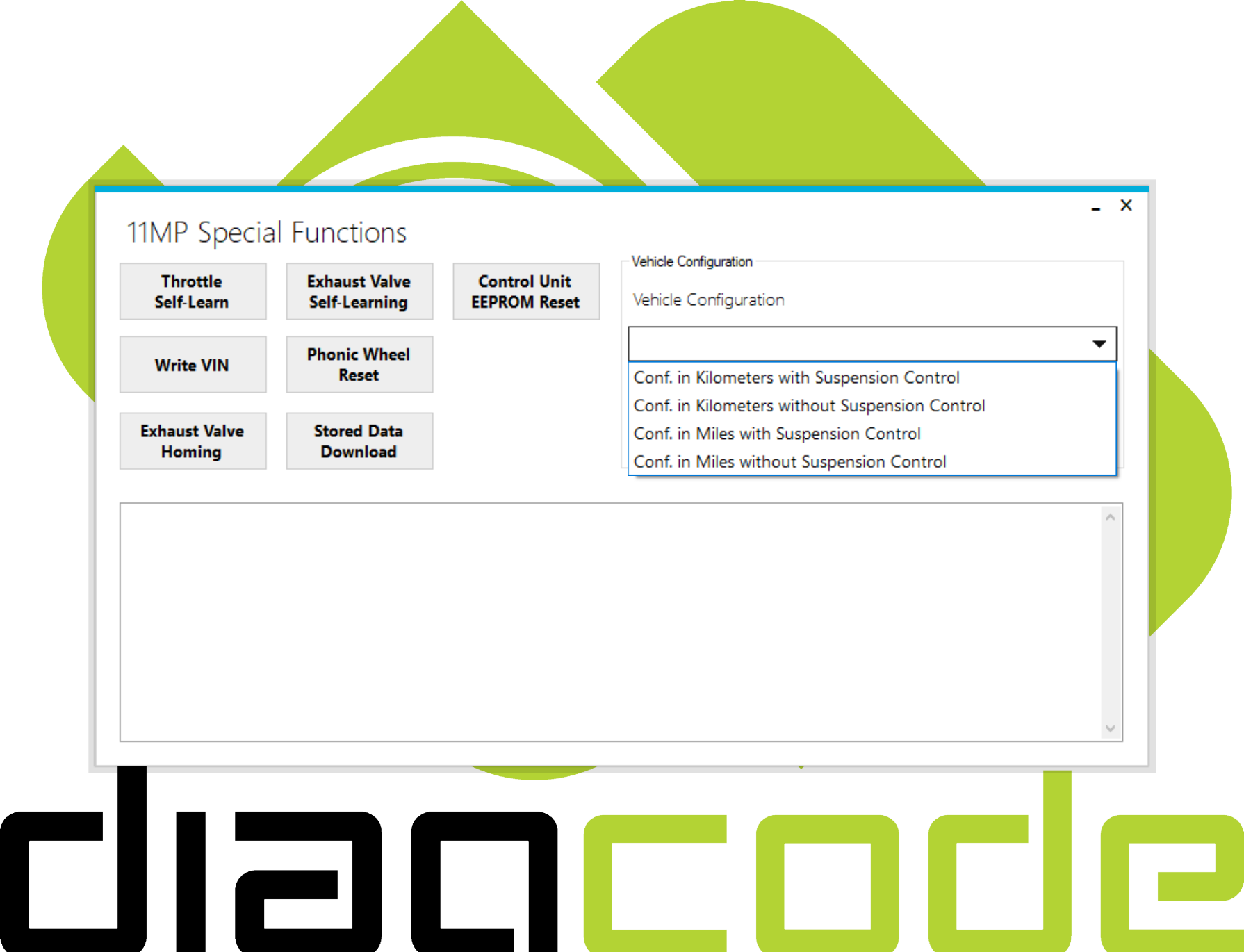

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

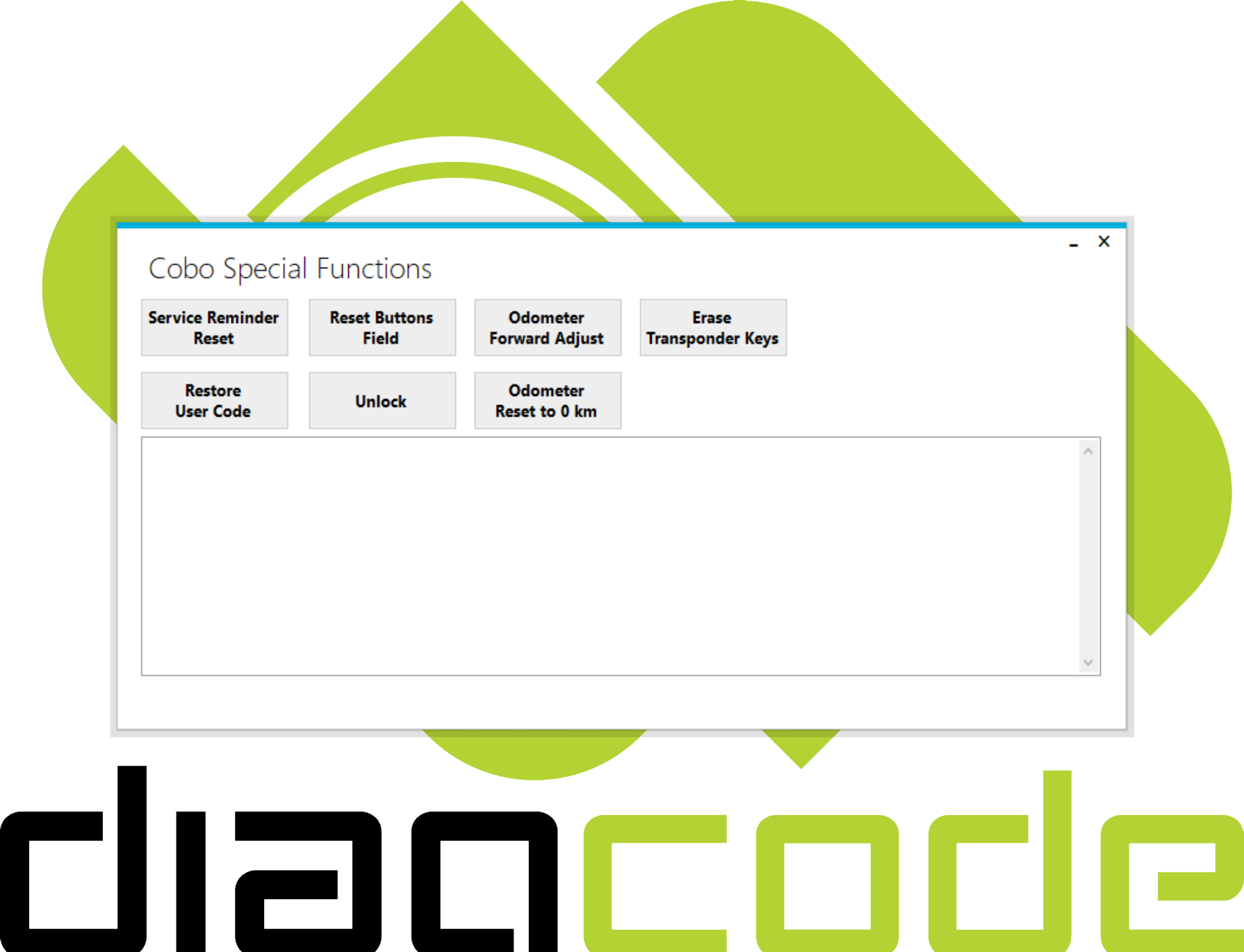

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Supported functionality in ABS:

- Read Identification

- Read and Erase DTCs

Supported functionality in SCU:

- Read Identification

Aprilia Tuono125 125cc 2017-2020

Emission: Euro 4 (K-line)

Year: 2017-2020

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Aprilia Tuono 125 2021+

Emission: Euro 5 (CAN)

Controllers supported:

- Engine ECU: Marelli MIU G4

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- TPS reset

- Set unit Virgin

- Read/Write Flash ( also modified flash dumps/Checksum correction )

- Read/Write EEPROM

- ECU Clone

Aprilia SR200GT 2021+

Emission: Euro 5 (CAN)

Controllers supported:

- Dashboard - Continental LCD dash

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Raise Odometer

- Change units configuration

Aprilia Tuono 660cc 2021+

Emission: Euro 5 (CAN)

Year: 2020+

Controllers supported:

- Engine ECU: Marelli IAW 11MP

- Dashboard: COBO 3 inch

- ABS: Conti MK100

- SCU (suspension controller)

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Supported functionality in ABS:

- Read Identification

- Read and Erase DTCs

Supported functionality in SCU:

- Read Identification

Aprilia Tuareg 660cc 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- Engine ECU: Marelli IAW 11MP

- Dashboard: COBO 5 inch

- ABS: Conti MK100

- SCU (suspension controller)

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Supported functionality in ABS:

- Read Identification

- Read and Erase DTCs

Aprilia Tuono 1000cc 2011-2016

Emission: Euro 3 (K-line)

Year: 2011-2016

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Aprilia Tuono 1100cc 2017-2020

Emission: Euro 4 (K-line)

Year: 2017-2020

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

- Dashboard: COBO 3 inch

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Aprilia Tuono 1100cc 2020+

Emission: Euro 5 (CAN)

Year: 2020+

Controllers supported:

- Engine ECU: Marelli IAW 11MP

- Dashboard: COBO 5 inch

- ABS: Bosch

- SCU (suspension controller)

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Aprilia RSV4 1000cc 2011-2016

Emission: Euro 3 (K-line)

Year: 2011-2016

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Aprilia RSV4 1100cc 2017-2020

Emission: Euro 4 (K-line)

Year: 2017-2020

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

- Dashboard: COBO 3 inch

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Aprilia RSV4 1100cc 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- Engine ECU: Marelli 11MP

- Dashboard: COBO 5 inch

- ABS: Bosch

- SCU (suspension controller)

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Aprilia SXR 50cc 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- EFI PGJ19

Supported functionality:

- Read Identification,

- Read and erase DTC

- Reset adaption Values

- Read and Write VIN

- TPS reset

- Set unit virgin

Aprilia Shiver 900cc 2017-2019

Emission: Euro 4 (K-line)

Year: 2017-2019

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Aprilia Capnord 1200cc 2012-2016

Emission: Euro 4 (K-line)

Year: 2017-2019

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Aprilia Capnord 900cc 2017-2019

Emission: Euro 4 (K-line)

Year: 2017-2019

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Aprilia Dorsoduro 1200cc 2013-2016

Emission: Euro 4 (K-line)

Year: 2017-2019

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Aprilia RS125 2017-2020

Emission: Euro 4 (K-line)

Year: 2017-2020

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Derbi GPR125 2011-2015

Emission: Euro 3 (K-line)

Year: 2011-2015

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Moto Guzzi Caifornia 1400cc 2012-2018

Emission: Euro 4 (K-line)

Year: 2017-2019

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Moto Guzzi V85TT 850cc 2019

Emission: Euro 4 (K-line)

Year: 2019

Controllers supported:

- Engine ECU: Marelli IAW 7SM (K-line) - not work with J2534 interface

- Dashboard: COBO 3 inch

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Virginize Control Unit

- Read/Write EEPROM

- Read/Write Flash memory

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Moto Guzzi V85TT 850cc 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- Engine ECU: Marelli 11MP,

- Dashboard: COBO 3 inch

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Moto Guzzi V7 all type 750cc 2011-2016

Emission: Euro 3 (K-line)

Year: 2011-2016

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Moto Guzzi V7 and V9 all type 750cc 2017-2020

Emission: Euro 4 (K-line)

Year: 2017-2020

Controllers supported:

- Marelli MIUG3 (K-Kline)

- Dashboard: COBO D105 Dual Gauge

Supported funtionality in ECU:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Supported functionality in Dashboard:

- Identification

- Read/Erase DTC

- Service reminder reset

- Raise odometer

- Reset Mileage

- Reset User Code

- Erase keys ( not for keyless )

Moto Guzzi V7 All models 2021+

Emission: Euro 5 (CAN)

Controllers supported:

- Engine ECU: Marelli MIU G4

- Dashboard - Cobo D105 Dual Gauge

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- TPS reset

- Set unit Virgin

- Immo OFF (for non keyless types only)

- Read/Write Flash ( also modified flash dumps/Checksum correction )

- Read/Write EEPROM

- ECU Clone

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Raise Odometer

- Reset Mileage

- Reset User Code

- Erase keys ( not for keyless )

Moto Guzzi V9 models 2021+

Emission: Euro 5 (CAN)

Controllers supported:

- Engine ECU: Marelli MIU G4

- Dashboard - Minda Single Gauge

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- TPS reset

- Set unit Virgin

- Immo OFF (for non keyless types only)

- Read/Write Flash ( also modified flash dumps/Checksum correction )

- Read/Write EEPROM

- ECU Clone

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Raise Odometer

Moto Guzzi V100 Mandello 1000 cc 2022+

Emission Euro 5 (CAN)

Controllers Supported:

- Engine ECU: Marelli 11MP

- Dashboard: Cobo 5 inch LCD

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Moto Guzzi Stelvio 1200 cc 2022+

Emission Euro 5 (CAN)

Controllers Supported:

- Engine ECU: Marelli 11MP

- Dashboard: Cobo 5 inch LCD

Supported functionality in ECU:

- Read Identification

- Read and Erase DTCs

- Read and Write VIN

- Throttle Self-Learn

- Exhaust Value Homing

- Exhaust Value Adaptation

- Phonic Wheel Reset (needs manual adaptation)

- Stored Data download

- Control Unit Reset EEPROM Data

- Configuration of equipment (w/wo Ride control, Change km/miles)

- Read Full Flash

- Read and Write Map Flash

- Read and Write EEPROM

- Virginize control unit

- Map Checksum Correction

- Write Diagcode coded Tuning files

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Reset User Code

- Reset Button Field

- Raise Odometer

- Reset Odometer to 0km ( not possible with OE Diag )

- Erase Transponder Keys ( not possible with OE Diag )

Moto Guzzi V9 all type 900cc 2016-2020

Emission: Euro 4 (K-line)

Year: 2016-2020

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Mondial HPS125 2019-2021

Emission: Euro 3 (K-line)

Year: 2019-2021

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Vespa Sprint 50cc 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- EFI PGJ19

Supported funtionality:

- Read Identification,

- Read and erase DTC

- Reset adaption Values

- Read and Write VIN

- TPS reset

- Set unit virgin

Vespa 50cc various models 2017-2019

Emission: Euro 4 (CAN)

Year: 2017-2019

Controllers supported:

- EFI PGU09

Supported funtionality in ECU:

- Read Identification,

- Read and erase DTC

- Reset adaption Values

- Read and Write VIN

- TPS reset

- Set unit virgin

Vespa 125ccm i-Get Models 2017-2020

Emission: Euro 4 (CAN)

Year: 2017-2020

Controllers supported:

- EFI PGQ16

- Cobo LCD

Supported funtionality in ECU:

- Read Identification,

- Read and erase DTC

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

Vespa GTS300hpe 300cc 2018-2020

Emission: Euro 4 (CAN)

Year: 2017-2019

Controllers supported:

- Marelli MIU G4

- Cobo LCD

- ABS/ASR (K-line)

Supported funtionality in ECU:

- Read Identification,

- Read and erase DTC

- Reset adaption Values

- Read and Write VIN

- TPS reset

- Set unit virgin

- Read and Write Flash

- Read and Write EERPOM

- Automatic checksum correction of Flash

- Clone ECU

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

Supported functionality in ABS:

- Read Identification

- Read and Erase DTCs

Vespa GTS300hpe 300cc 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- Marelli MIU G4

- Cobo LCD

- ABS/ASR (K-line)

Supported funtionality in ECU:

- Read Identification,

- Read and erase DTC

- Reset adaption Values

- Read and Write VIN

- TPS reset

- Set unit virgin

- Read and Write Flash

- Read and Write EERPOM

- Automatic checksum correction of Flash

- Clone ECU

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

- Service Reminder Reset

- Raise Odometer

Supported functionality in ABS:

- Read Identification

- Read and Erase DTCs

Vespa 50cc various models 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- EFI PGJ19

Supported functionality in ECU:

- Read Identification,

- Read and Erase DTC

- Reset Adaption Values

- Read and Write VIN

- TPS reset

- Set Unit Virgin

- Component Test of Various Parts

Vespa 125ccm various models 2013-2017

Emission: Euro 3 (K-line)

Year: 2013-2017

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Vespa 125ccm various models 2021+

Emission: Euro 5 (CAN)

Year: 2021+

Controllers supported:

- Marelli MIU G4

- Cobo LCD

Supported funtionality in ECU:

- Read Identification,

- Read and erase DTC

- Reset adaption Values

- Read and Write VIN

- TPS reset

- Set unit virgin

- Read and Write Flash

- Read and Write EERPOM

- Automatic checksum correction of Flash

- Clone ECU

Supported functionality in Dashboard:

- Read Identification

- Read and Erase DTCs

Vespa 150ccm various models 2013-2017

Emission: Euro 3 (K-line)

Year: 2013-2017

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Vespa 250ccm various models 2013-2017

Emission: Euro 3 (K-line)

Year: 2013-2017

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Vespa 300ccm various models 2013-2017

Emission: Euro 3 (K-line)

Year: 2013-2017

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

UM DSR125 2018-2021

Emission: Euro 4 (K-line)

Year: 2018-2021

Controllers supported:

- Marelli MIUG3 (K-Kline)

Supported funtionality:

- Identification

- Read/erase DTC

- TPS reset

- Erase Adaption Values

- Component test of various parts

- Read/Write FLASH

- Read/Write EEPROM

- Virginize

- Configure with/without Antislipregulation ( if supported )

Software features of SD22.1:

This is a NEW SPECIAL PAID FEATURE. It is an addition to the SD22 and is designed for the Magneti Marelli ECU - 11MP.F1 <- ECU Photo

Supported Motorcycle Models (2021+):

Aprilia: Tuono 660 Euro5, Tuareg 660 Euro5, RS660 Euro5, RSV4 1100 Euro5, Tuono 1100 Euro5

Moto Guzzi: V85TT Euro5, V100 Euro5

Key Features:

 Full reading and writing capabilities of external EEPROM via OBD or Bench.

 Virginize 11MP ECU by dump and write virgin EEPROM dump to ECU fully by OBD or Bench ( for Learn need to use OE Diag tool).

 Write tuning maps fully by OBD or Bench.

 Read tuning maps via special Bench Protocol on Bench (takes around 30 minutes – depends on J2534 Hardware which is used).

 Access to original files from our server for your ECU - at no extra cost.

 Automatic checksum correction for modified Flash Files (requires working original Flash File).

 Exclusive Services for Tuners:

For an additional fee, we offer file services for tuners, including 11MP, MIU G4, MIU G3, and 7SM Controllers function deletes (exhaust flaps, Lambda, Cat off, single DTC off,…). For more details and pricing, reach out to us at info@diagcode.com

30_Diagnostic connetion FLASH functions 2.png

PRICES:

SD22 -> 860 euro

SD22.1 -> 750 euro

For old customers of SD22 function (who purchased before 20—Sept-2023 year) - price of the SD22.1 -> 600 euro

SD22+SD22.1 -> 1550 euro

Order Now
